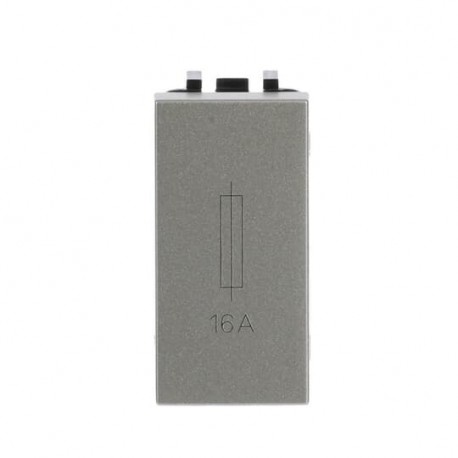

NIESSEN 2CLA210800N1901 2CLA210800N1901 N2108 CV NIESSEN Portafusible CV View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA210800N1901 N2108 CV NIESSEN Portafusible CV

2CLA210800N1901

N2108 CV

NIESSEN

20 Pcs.

Portafusible CV CV fuse holder Fuse holder 1P pole 250 V Champagne - Zenit

Automation > Holder for cylindrical fuse
Flush-mounting series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A fuse holder is a compact terminal component installed in building management and control enclosures to safely house low-voltage protective fuses.

The Niessen 2CLA210800N1901 features a decorative champagne finish from the Zenit design range for aesthetically conscious interior electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX210109N1001
  • Mounting Type: Snap mounting
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK10103A5108
  • Number of Poles: 1P
  • Number of Batteries: 0
  • Rated Voltage (U r ): 250 V
  • Design Range: Zenit
  • Surface Finishing: Decor
  • Material: Plastic
  • Color: Champagne
  • Width in Number of Modular Spacings: 1
  • Product Net Width: 22 mm
  • Product Net Height: 44 mm
  • Product Net Weight: 23 g

More info

▲
Installation
Instructions and Manuals2CLX210109N1001
Mounting TypeSnap mounting
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK10103A5108
Number of Poles1P
Number of Batteries0
Electrical
Rated Voltage (Ur)250 V
Design
Design RangeZenit
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
ColorChampagne
Dimensions
Width in Number of Modular Spacings1
Product Net Width22 mm
Product Net Height44 mm
Product Net Weight23 g
Built-In Depth (t2)28 mm
Ordering
Replaced Product ID (OLD)2CLA210800N1902
Material Compliance
RoHS Declaration2CLC210800N1901
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK107992A5644
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC002705 - Holder for cylindrical fuse
ETIM 10EC002705 - Holder for cylindrical fuse
UNSPSC39121624
