2CLA950400A1301 9504 PL NIESSEN Detec. movimientos 220 wireless PL
2CLA950400A1301
9504 PL
NIESSEN
1 Pcs.
Detec. movimientos 220 wireless PL
Detec. 220 wireless PL movements
Horizontal 8 … 220 Motion sensor Silver
Automation > Sensor element for movement sensor
Pearl waves ap steel
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

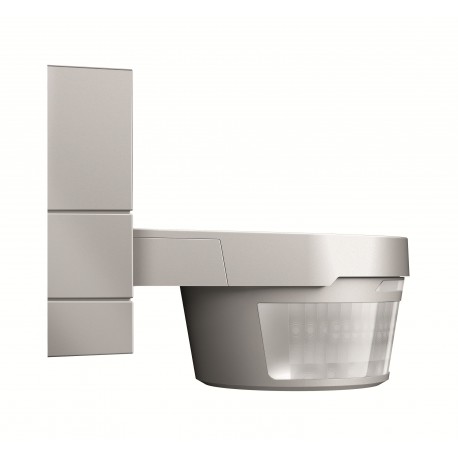

The 2CLA950400A1301 9504 PL NIESSEN Detec. movimientos 220 wireless PL operates as an exterior-grade surface-mounted motion sensor designed to trigger security lighting or automated perimeter responses.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting Type: Surface mounted
- Mounting Height: 2.5 m
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP55
- Measuring Range: 32 m
- Minimum Switching Time: Switch-On 60 second [unit of time]
- Number of Batteries: 0
- Sensor Detection Range: Horizontal 8 … 220
- Design Range: Zenit
- Surface Finishing: Decor
- Material: Plastic
- Color: Silver
- Product Net Width: 0.1 m
- Product Net Height: 0.098 m
- Product Net Depth / Length: 0.106 m
- Product Net Weight: 0.309 kg
More info
▲| Installation | |
|---|---|
| Mounting Type | Surface mounted |
| Mounting Height | 2.5 m |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP55 |
| Technical | |
| Measuring Range | 32 m |
| Minimum Switching Time | Switch-On 60 second [unit of time] |
| Number of Batteries | 0 |
| Sensor Detection Range | Horizontal 8 … 220 |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Color | Silver |
| Dimensions | |
| Product Net Width | 0.1 m |
| Product Net Height | 0.098 m |
| Product Net Depth / Length | 0.106 m |
| Product Net Weight | 0.309 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0950403 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A2195 |
| External Classifications and Standards | |
| ETIM 9 | EC000138 - Sensor element for movement sensor |
| ETIM 10 | EC000138 - Sensor element for movement sensor/presence detector |
