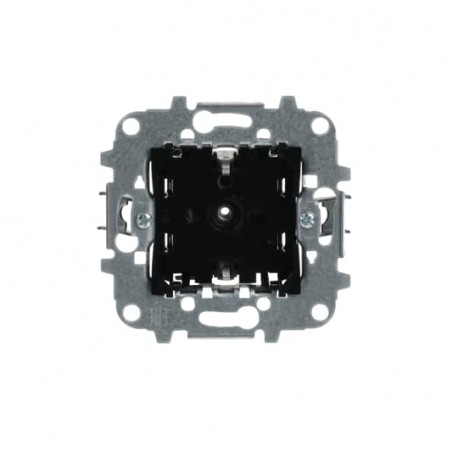

2CLA818860A1001 8188.6 NIESSEN Base Schuko automatico pr.inf.
2CLA818860A1001
8188.6
NIESSEN
10 Pcs.
Automation > Socket outlet
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 2CLA818860A1001 8188.6 NIESSEN Base Schuko automatico pr.inf. is a standard Schuko protective contact socket designed for flush mounting in building electrical installations. These receptacles supply reliable single-phase power to consumer electronics, tools, and office appliances. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting Type: Flush Mounted
- Type of Fastening: Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Number of Phases: 2-phase
- Connection Type: Plug Clamp
- Socket Outlet Type: Protective Contact (SCHUKO)
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 16 A
- Frequency ( f ): 50...60 Hz
- Design Range: Platform 8100
- Legend: Without imprint
- Label Space Provided: Without Label Space
- Number of Gangs: 1-gang
More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Phases | 2-phase |
| Connection Type | Plug Clamp |
| Socket Outlet Type | Protective Contact (SCHUKO) |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 16 A |
| Frequency (f) | 50...60 Hz |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Legend | Without imprint |
| Label Space Provided | Without Label Space |
| Number of Gangs | 1-gang |
| Dimensions | |
| Product Net Width | 0.149 m |
| Product Net Height | 0.078 m |
| Product Net Depth / Length | 0.225 m |
| Product Net Weight | 0.063 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0818860 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Ecodesign | 9AKK108468A3800 |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 92 % |
| Environmental Product Declaration - EPD | 9AKK108468A7778 |
| Material Compliance | |
| RoHS Declaration | 2CLC818860A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK1074920617 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
