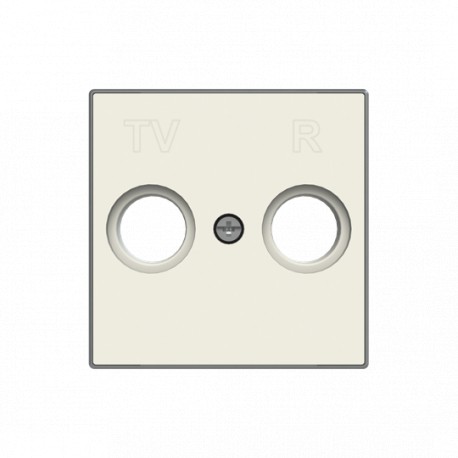

NIESSEN 2CLA855000A1101 2CLA855000A1101 8550 BL NIESSEN Tapa toma TV/R BL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA855000A1101 8550 BL NIESSEN Tapa toma TV/R BL

2CLA855000A1101

8550 BL

NIESSEN

20 Pcs.

Tapa toma TV/R BL TV/R BL socket cover Cover plate SAT 1 gang White - Sky Niessen

Automation > Insert/cover for communication technology
Luxury mechanical mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Niessen 2CLA855000A1101 8550 BL NIESSEN Tapa toma TV/R BL is a television and radio antenna socket cover plate configured to organize broadcast cable connections in building walls. Antenna plates maintain secure alignment of coaxial feeds for broadcast reception equipment.

Exact pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX850009A1001
  • Mounting Type: Flush Mounted
  • Type of Fastening: Mounting with Screw
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Application: SAT
  • Type of Indicator: Without indication field
  • Outlet Orientation: Straight
  • Design Range: Sky Niessen
  • Surface Finishing: Untreated
  • Material: Plastic
  • RAL Number: RAL 9010 - Pure White
  • Color: White
  • Product Net Width: 0.126 m
  • Product Net Height: 0.102 m

More info

▲
Installation
Instructions and Manuals2CLX850009A1001
Mounting TypeFlush Mounted
Type of FasteningMounting with Screw
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK107046A0356
ApplicationSAT
Type of IndicatorWithout indication field
Outlet OrientationStraight
Design
Design RangeSky Niessen
Surface FinishingUntreated
Glossy
MaterialPlastic
Thermoplastic
RAL NumberRAL 9010 - Pure White
ColorWhite
Dimensions
Product Net Width0.126 m
Product Net Height0.102 m
Product Net Depth / Length0.138 m
Product Net Weight0.013 kg
Ordering
Replaced Product ID (OLD)2CL0855001
Material Compliance
RoHS Declaration2CLC855000A1101
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230816
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP739ed8c4-4a0b-4caa-8447-8b6fdfd413bb Spain
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
Popular Downloads
Marketing Video9AKK106930A1594
9AKK108468A9590
External Classifications and Standards
ETIM 9EC000018 - Insert/cover for communication technology
ETIM 10EC000018 - Insert/cover for communication technology
UNSPSC39121704
