View larger

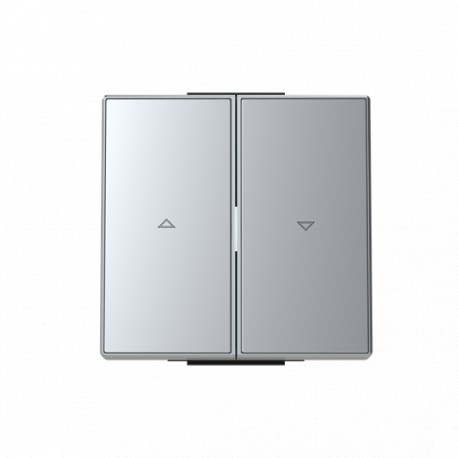

2CLA854400A1301 8544 PL NIESSEN Tecla interruptor persianas PL
2CLA854400A1301
8544 PL
NIESSEN
10 Pcs.
Automation > Control element/cover plate for domestic switching devices
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Venetian blind switch rocker, such as the Niessen 2CLA854400A1301 from the Sky Niessen range, provides the manual operating interface for motorized window coverings and shutters in building automation layouts. These actuators allow users to raise, lower, and stop shading systems locally.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX850009A1001
- Type of Fastening: Clamp
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Application: Venetian blind
- Design Range: Sky Niessen
- Surface Finishing: Decor
- Material: Plastic
- Legend: Symbol "arrows"
- Color: Silver
- Product Net Width: 0.126 m
- Product Net Height: 0.071 m
- Product Net Depth / Length: 0.14 m
- Product Net Weight: 0.025 kg
- Replaced Product ID (OLD): 2CL0854403
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX850009A1001 |
| Type of Fastening | Clamp |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Application | Venetian blind |
| Design | |
| Design Range | Sky Niessen |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Symbol "arrows" |
| Color | Silver |
| Dimensions | |
| Product Net Width | 0.126 m |
| Product Net Height | 0.071 m |
| Product Net Depth / Length | 0.14 m |
| Product Net Weight | 0.025 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0854403 |
| Material Compliance | |
| RoHS Declaration | 2CLC854400A1301 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| Popular Downloads | |
| Marketing Video | 9AKK106930A1594 |
| 9AKK108468A9590 | |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
