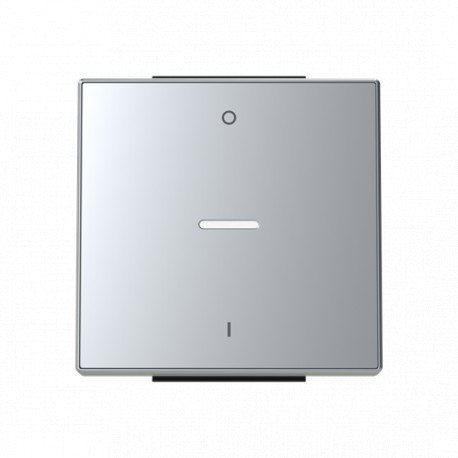

NIESSEN 2CLA850140A1301 2CLA850140A1301 8501.4 PL NIESSEN Tecla interruptor bip. c/visor PL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA850140A1301 8501.4 PL NIESSEN Tecla interruptor bip. c/visor PL

2CLA850140A1301

8501.4 PL

NIESSEN

5 Pcs.

Tecla interruptor bip. c/visor PL Beep switch key. w/PL viewer Rocker Characters 0 and 1 for Switch/push button, Single rocker Silver - Sky Niessen

Automation > Control element/cover plate for domestic switching devices
Luxury mechanical mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A bipolar switch key with an integrated monitoring visor, manufactured by Niessen as part number 2CLA850140A1301, provides a clear operational interface for dual-pole circuit breakers and switches. It features standard markings for clear visibility in electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX850009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Application: Switch/push button
  • Design Range: Sky Niessen
  • Surface Finishing: Decor
  • Material: Plastic
  • Legend: Characters 0 and 1
  • Color: Silver
  • Product Net Width: 0.081 m
  • Product Net Height: 0.078 m
  • Product Net Depth / Length: 0.131 m
  • Product Net Weight: 0.022 kg
  • Replaced Product ID (OLD): 2CL0850143

More info

▲
Installation
Instructions and Manuals2CLX850009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK107046A0356
ApplicationSwitch/push button
Design
Design RangeSky Niessen
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendCharacters 0 and 1
ColorSilver
Dimensions
Product Net Width0.081 m
Product Net Height0.078 m
Product Net Depth / Length0.131 m
Product Net Weight0.022 kg
Ordering
Replaced Product ID (OLD)2CL0850143
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 94.1 %
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 90.45 %
Environmental Product Declaration - EPD9AKK108468A8667
Material Compliance
RoHS Declaration2CLC850140A1301
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A1744
EU Data Act Applicability and ComplianceNot Applicable
Popular Downloads
Marketing Video9AKK106930A1594
9AKK108468A9590
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
UNSPSC39121704

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
