2CLA850000A1301 8500 PL NIESSEN Tapa ciega PL
2CLA850000A1301
8500 PL
NIESSEN
10 Pcs.
Automation > Control element/cover plate for domestic switching devices
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

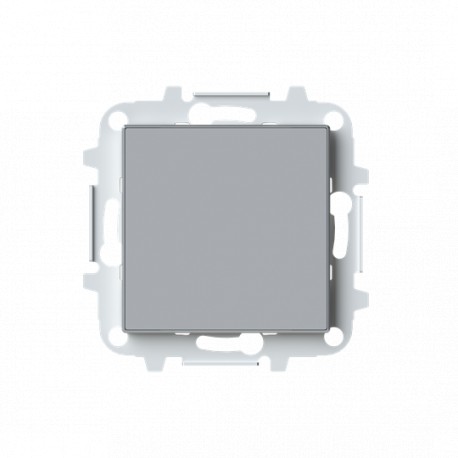

The 2CLA850000A1301 8500 PL NIESSEN Tapa ciega PL from Niessen acts as a protective blanking cover for unused module slots within electrical mounting frames. Installers use blind plates to maintain safety standards and aesthetic uniformity across commercial and residential distribution boards.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX850009A1001
- Type of Fastening: Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Application: Blind plate
- Accessories Available: Yes
- Design Range: Sky Niessen
- Surface Finishing: Decor
- Material: Plastic
- Legend: Without imprint
- Color: Silver
- Product Net Width: 0.09 m
- Product Net Height: 0.102 m
- Product Net Depth / Length: 0.245 m
- Product Net Weight: 0.039 kg
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX850009A1001 |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Application | Blind plate |
| Accessories Available | Yes |
| Design | |
| Design Range | Sky Niessen |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Without imprint |
| Color | Silver |
| Dimensions | |
| Product Net Width | 0.09 m |
| Product Net Height | 0.102 m |
| Product Net Depth / Length | 0.245 m |
| Product Net Weight | 0.039 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0850003 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 78.4 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 91.9 % |
| Environmental Product Declaration - EPD | 9AKK108468A7372 |
| Material Compliance | |
| RoHS Declaration | 2CLC850000A1301 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A1744 |
| EU Data Act Applicability and Compliance | Not Applicable |
| Popular Downloads | |
| Marketing Video | 9AKK106930A1594 |
| 9AKK108468A9590 | |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
