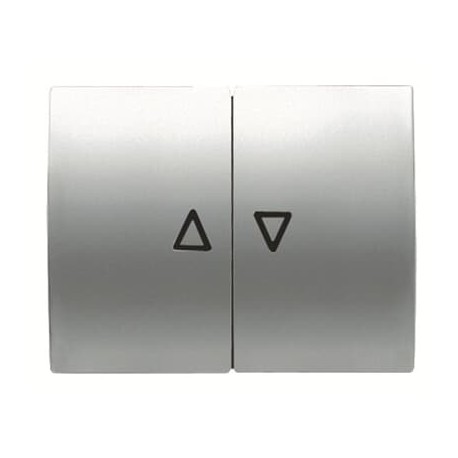

NIESSEN 2CLA844400A1401 2CLA844400A1401 8444 TT NIESSEN Tecla interruptor persianas View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA844400A1401 8444 TT NIESSEN Tecla interruptor persianas

2CLA844400A1401

8444 TT

NIESSEN

20 Pcs.

Tecla interruptor persianas Shutter switch key Cover plate Symbol "arrows" for Venetian blind, Two-part rocker Titanium - Olas

Automation > Control element/cover plate for domestic switching devices
tt waves titanium

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CLA844400A1401 8444 TT NIESSEN Tecla interruptor persianas is a metallic switch rocker built specifically for operating Venetian blinds and rolling shutters within building electrical systems. This robust control plate provides clear directional arrow markings to facilitate reliable manual actuation of motorized window shading units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX840009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Venetian blind
  • Accessories Available: Yes
  • Design Range: Olas
  • Surface Finishing: Decor
  • Material: Metal
  • Legend: Symbol "arrows"
  • Color: Titanium
  • Product Net Width: 0.152 m
  • Product Net Height: 0.055 m
  • Product Net Depth / Length: 0.313 m
  • Product Net Weight: 0.051 kg
  • Replaced Product ID (OLD): 2CL0844404

More info

▲
Installation
Instructions and Manuals2CLX840009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationVenetian blind
Accessories AvailableYes
Design
Design RangeOlas
Surface FinishingDecor
Matt
MaterialMetal
LegendSymbol "arrows"
ColorTitanium
Dimensions
Product Net Width0.152 m
Product Net Height0.055 m
Product Net Depth / Length0.313 m
Product Net Weight0.051 kg
Ordering
Replaced Product ID (OLD)2CL0844404
Material Compliance
RoHS Declaration2CLC844400A1401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108469A7957
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240123
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A1744
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
