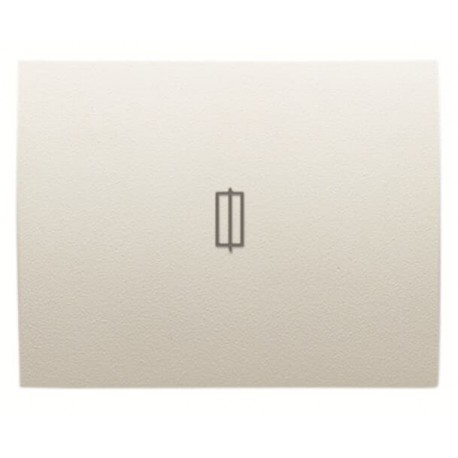

NIESSEN 2CLA840800A1001 2CLA840800A1001 8408 BL NIESSEN Tapa portafusible View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA840800A1001 8408 BL NIESSEN Tapa portafusible

2CLA840800A1001

8408 BL

NIESSEN

5 Pcs.

Tapa portafusible Fuse cover Cover plate for Fuse holder with Fuse symbol Cream white - Olas

Automation > Control element/cover plate for domestic switching devices
bl waves white

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CLA840800A1001 8408 BL NIESSEN Tapa portafusible is a fuse holder cover designed to safely shield electrical fuse components in modular distribution units. Protective housing elements of this type prevent accidental contact with energized circuits while clearly indicating circuit protection status.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX840009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Fuse holder
  • Design Range: Olas
  • Surface Finishing: Glossy
  • Material: Metal
  • Legend: Fuse symbol
  • Color: Cream white
  • Product Net Width: 0.093 m
  • Product Net Height: 0.062 m
  • Product Net Depth / Length: 0.139 m
  • Product Net Weight: 0.06 kg
  • Replaced Product ID (OLD): 2CL0840800
  • RoHS Declaration: 2CLC840800A1001

More info

▲
Installation
Instructions and Manuals2CLX840009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationFuse holder
Design
Design RangeOlas
Surface FinishingGlossy
MaterialMetal
LegendFuse symbol
ColorCream white
Dimensions
Product Net Width0.093 m
Product Net Height0.062 m
Product Net Depth / Length0.139 m
Product Net Weight0.06 kg
Ordering
Replaced Product ID (OLD)2CL0840800
Material Compliance
RoHS Declaration2CLC840800A1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108469A7957
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240123
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
