NIESSEN 2CLA840140A1401 2CLA840140A1401 8401.4 TT NIESSEN Tecla interruptor bip. c/visor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA840140A1401 8401.4 TT NIESSEN Tecla interruptor bip. c/visor

2CLA840140A1401

8401.4 TT

NIESSEN

5 Pcs.

Tecla interruptor bip. c/visor Bip switch key. c/viewfinder Rocker Characters 0 and 1 for Switch/push button, Single rocker Titanium - Olas

Automation > Control element/cover plate for domestic switching devices
tt waves titanium

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

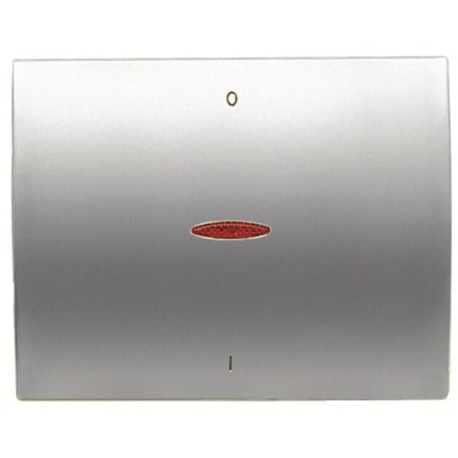

The 2CLA840140A1401 8401.4 TT NIESSEN Tecla interruptor bip. c/visor is a titanium-finished bipolar switch rocker equipped with an integrated display window. Such interface components are standard additions to electrical distribution setups requiring clear operational status visibility.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX840009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Switch/push button
  • Design Range: Olas
  • Surface Finishing: Decor
  • Material: Metal
  • Legend: Characters 0 and 1
  • Color: Titanium
  • Product Net Width: 0.093 m
  • Product Net Height: 0.062 m
  • Product Net Depth / Length: 0.139 m
  • Product Net Weight: 0.056 kg
  • Replaced Product ID (OLD): 2CL0840144
  • RoHS Declaration: 2CLC840140A1401

More info

▲
Installation
Instructions and Manuals2CLX840009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationSwitch/push button
Design
Design RangeOlas
Surface FinishingDecor
Matt
MaterialMetal
LegendCharacters 0 and 1
ColorTitanium
Dimensions
Product Net Width0.093 m
Product Net Height0.062 m
Product Net Depth / Length0.139 m
Product Net Weight0.056 kg
Ordering
Replaced Product ID (OLD)2CL0840144
Material Compliance
RoHS Declaration2CLC840140A1401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A1744
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
