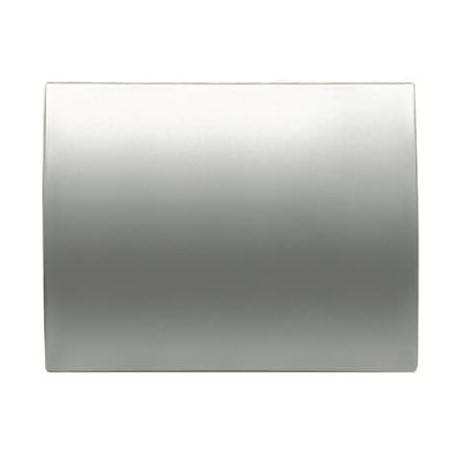

NIESSEN 2CLA840100A1401 2CLA840100A1401 8401 TT NIESSEN Tecla interruptor-conmutador View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA840100A1401 8401 TT NIESSEN Tecla interruptor-conmutador

2CLA840100A1401

8401 TT

NIESSEN

20 Pcs.

Tecla interruptor-conmutador Switch-switch key Rocker Without imprint for Switch/push button, Single rocker Titanium - Olas

Automation > Control element/cover plate for domestic switching devices
tt waves titanium

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Niessen 2CLA840100A1401 8401 TT Tecla interruptor-conmutador acts as an architectural switch rocker plate used for manually actuating basic on-off or two-way switching mechanisms. It is typically installed in residential and commercial environments to provide a cohesive aesthetic finish for wall control points. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX840009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Switch/push button
  • Accessories Available: Yes
  • Design Range: Olas
  • Surface Finishing: Decor
  • Material: Metal
  • Legend: Without imprint
  • Color: Titanium switch rocker plate
  • Product Net Width: 0.152 m
  • Product Net Height: 0.055 m
  • Product Net Depth / Length: 0.313 m
  • Product Net Weight: 0.052 kg
  • Replaced Product ID (OLD): 2CL0840104

More info

▲
Installation
Instructions and Manuals2CLX840009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationSwitch/push button
Accessories AvailableYes
Design
Design RangeOlas
Surface FinishingDecor
Matt
MaterialMetal
LegendWithout imprint
ColorTitanium
Dimensions
Product Net Width0.152 m
Product Net Height0.055 m
Product Net Depth / Length0.313 m
Product Net Weight0.052 kg
Ordering
Replaced Product ID (OLD)2CL0840104
Material Compliance
RoHS Declaration2CLC840100A1401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108469A7957
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240123
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A1744
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
