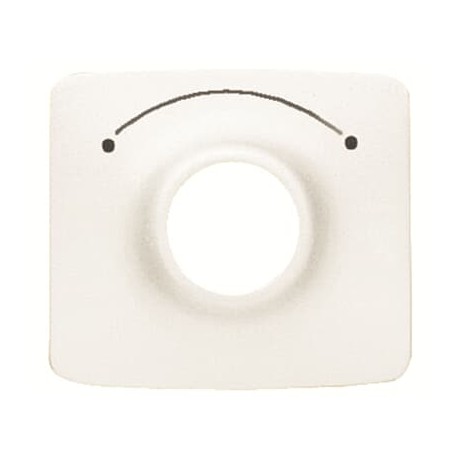

NIESSEN 2CLA825300A1101 2CLA825300A1101 8253 BA NIESSEN Tapa conmutador llave 2 posic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA825300A1101 8253 BA NIESSEN Tapa conmutador llave 2 posic

2CLA825300A1101

8253 BA

NIESSEN

1 Pcs.

Tapa conmutador llave 2 posic Key Switch Cover 2 posic Rocker Symbol "2-level switch" for Switch/push button, Key Alpine white - Arco

Automation > Control element/cover plate for domestic switching devices
Arco alpine white ba

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A key switch cover plate by Niessen, part number 2CLA825300A1101, is designed to cleanly interface with underlying electrical control mechanisms in residential or commercial wall installations. Such cover plates provide a protective, finished facade over wall switches while clearly identifying the operational state of the circuit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX820009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Switch/push button
  • Design Range: Arco
  • Surface Finishing: Untreated
  • Material: Duroplast
  • Legend: Symbol "2-level switch"
  • Color: Alpine white
  • Product Net Width: 0.073 m
  • Product Net Height: 0.033 m
  • Product Net Depth / Length: 0.073 m
  • Product Net Weight: 0.028 kg
  • Replaced Product ID (OLD): 2CL0825301
  • RoHS Declaration: 2CLC825300A1101

More info

▲
Installation
Instructions and Manuals2CLX820009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationSwitch/push button
Design
Design RangeArco
Surface FinishingUntreated
Glossy
MaterialDuroplast
LegendSymbol "2-level switch"
ColorAlpine white
Dimensions
Product Net Width0.073 m
Product Net Height0.033 m
Product Net Depth / Length0.073 m
Product Net Weight0.028 kg
Ordering
Replaced Product ID (OLD)2CL0825301
Material Compliance
RoHS Declaration2CLC825300A1101
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
