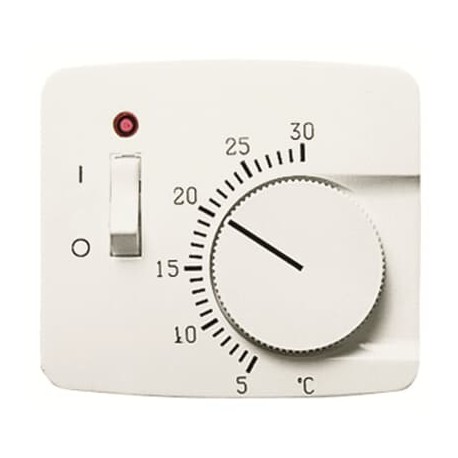

NIESSEN 2CLA824010A1101 2CLA824010A1101 8240.1 BA NIESSEN Tapa termostato c/interruptor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA824010A1101 8240.1 BA NIESSEN Tapa termostato c/interruptor

2CLA824010A1101

8240.1 BA

NIESSEN

5 Pcs.

Tapa termostato c/interruptor Thermostat cover w/switch Cover plate Various symbols for Thermostat Turn button Alpine white - Arco

Automation > Control element/cover plate for domestic switching devices
Arco alpine white ba

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Niessen 2CLA824010A1101 is an integrated thermostat cover plate featuring an auxiliary switch cutout for combined heating and electrical control applications. These combination covers streamline wall-box layouts by housing both temperature regulators and manual switches in a single unit.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX820009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Application: Thermostat
  • Design Range: Arco
  • Surface Finishing: Untreated
  • Material: Duroplast
  • Legend: Various symbols
  • Color: Alpine white
  • Product Net Width: 0.081 m
  • Product Net Height: 0.078 m
  • Product Net Depth / Length: 0.131 m
  • Product Net Weight: 0.021 kg
  • Replaced Product ID (OLD): 2CL0824011
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
Installation
Instructions and Manuals2CLX820009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
ApplicationThermostat
Design
Design RangeArco
Surface FinishingUntreated
Glossy
MaterialDuroplast
LegendVarious symbols
ColorAlpine white
Dimensions
Product Net Width0.081 m
Product Net Height0.078 m
Product Net Depth / Length0.131 m
Product Net Weight0.021 kg
Ordering
Replaced Product ID (OLD)2CL0824011
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
