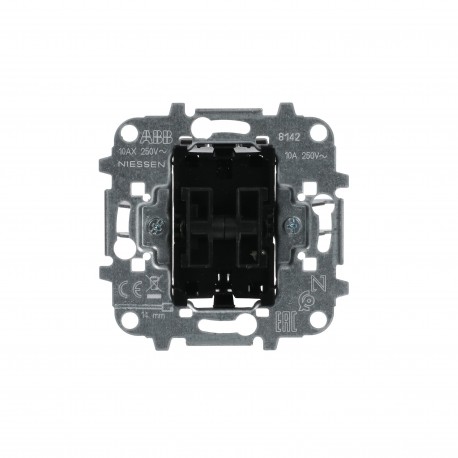

2CLA814410A1001 8144.1 NIESSEN Interruptor para persianas
2CLA814410A1001
8144.1
NIESSEN
10 Pcs.
Automation > Venetian blind switch/-push button
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen 2CLA814410A1001 8144.1 Interruptor para persianas is a flush-mounted blind switch engineered for controlling motorized shutters and window shading systems. This device provides dependable manual actuation for automated drives within standard wall installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX810109A1001
- Mounting Type: Flush Mounted
- Type of Fastening: Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Number of Poles: 1P
- Number of Buttons: 2
- Actuator Type: Rocker
- Connection Type: Screw
- Accessories Available: Yes
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 10 A
- Design Range: Platform 8100
- Label Space Provided: Without Label Space
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX810109A1001 |
| Mounting Type | Flush Mounted |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Poles | 1P |
| Number of Buttons | 2 |
| Actuator Type | Rocker |
| Connection Type | Screw |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 10 A |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Arco | |
| Vega | |
| Alter Vega | |
| Label Space Provided | Without Label Space |
| Dimensions | |
| Product Net Width | 0.149 m |
| Product Net Height | 0.078 m |
| Product Net Depth / Length | 0.225 m |
| Product Net Weight | 0.064 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0814410 |
| Material Compliance | |
| RoHS Declaration | 2CLC814410A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 397ac952-a938-4aa8-bd3e-18b7e4733bc7 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A1744 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000044 - Window blind switch |
| ETIM 10 | EC000044 - Window blind switch |
| UNSPSC | 39122200 |
