View larger
Images are for illustrative purposes only. Please refer to data sheet for details

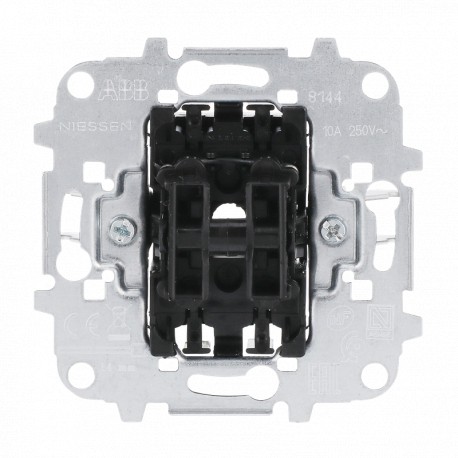

2CLA814400A1001 8144 NIESSEN Pulsador para persianas
2CLA814400A1001
8144
NIESSEN
10 Pcs.
Pulsador para persianas
Push button for blinds
Push button insert 1-pole push button 10 A
Automation > Venetian blind switch/-push button
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX810109A1001 |
| Mounting Type | Flush Mounted |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Poles | 1P |
| Number of Buttons | 2 |
| Actuator Type | Rocker |
| Connection Type | Screw |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 10 A |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Arco | |
| Vega | |
| Alter Vega | |
| Label Space Provided | Without Label Space |
| Dimensions | |
| Product Net Width | 0.149 m |
| Product Net Height | 0.078 m |
| Product Net Depth / Length | 0.225 m |
| Product Net Weight | 0.064 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0814400 |
| Material Compliance | |
| RoHS Declaration | 2CLC814400A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | b3231309-78ad-4ae2-9c2a-117e16f2faef Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A1744 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000044 - Window blind switch |
| ETIM 10 | EC000044 - Window blind switch |
| UNSPSC | 39122200 |
