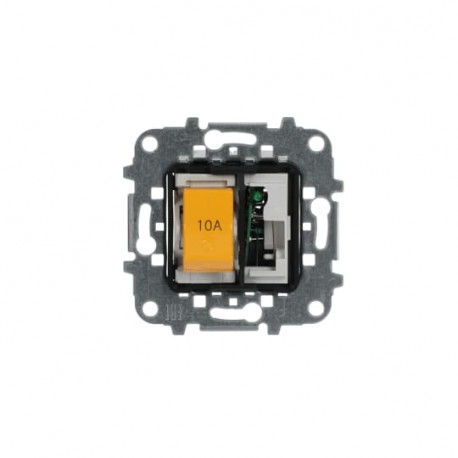

NIESSEN 2CLA813430A1001 2CLA813430A1001 8134.3 NIESSEN Proteccion mag+diferencial 16A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA813430A1001 8134.3 NIESSEN Proteccion mag+diferencial 16A

2CLA813430A1001

8134.3

NIESSEN

1 Pcs.

Proteccion mag+diferencial 16A Mag+differential protection 16A Built-in Device Circuit breaker 1P - Platform 8100

Automation > Control switch
Luxury mechanical mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Niessen residual current operated circuit breaker with integral overcurrent protection safeguards electrical installations against both earth leakage faults and overloads. This device combines multiple protective functions into a single modular unit to protect downstream equipment and personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: Front IP20
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Number of Poles: 1P
  • Number of Switch Positions: 2
  • Actuator Type: Rocker
  • Switch Type: On / Off
  • Number of Batteries: 0
  • Rated Operational Voltage: Maximum 230 V
  • Design Range: Platform 8100
  • Product Net Width: 0.076 m
  • Product Net Height: 0.064 m
  • Product Net Depth / Length: 0.076 m
  • Product Net Weight: 0.12 kg
  • Replaced Product ID (OLD): 2CL0813430
  • RoHS Declaration: 2CLC813430A1001

More info

▲
Installation
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionFront IP20
Technical
Data Sheet, Technical Information9AKK107046A0356
Number of Poles1P
Number of Switch Positions2
Actuator TypeRocker
Switch TypeOn / Off
Number of Batteries0
Electrical
Rated Operational VoltageMaximum 230 V
Design
Design RangePlatform 8100
Alba
Sky Niessen
Dimensions
Product Net Width0.076 m
Product Net Height0.064 m
Product Net Depth / Length0.076 m
Product Net Weight0.12 kg
Ordering
Replaced Product ID (OLD)2CL0813430
Material Compliance
RoHS Declaration2CLC813430A1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230816
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC002611 - Control switch
ETIM 10EC002611 - Control switch
UNSPSC39122200

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
