View larger
Images are for illustrative purposes only. Please refer to data sheet for details

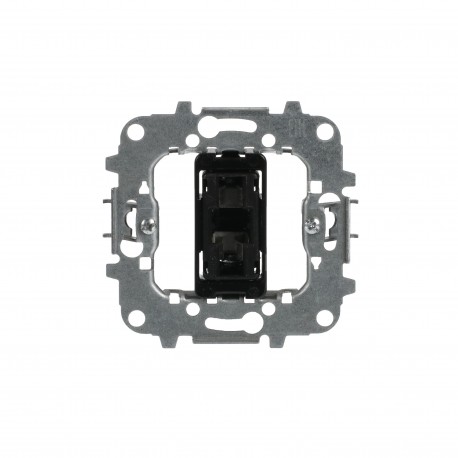

2CLA810800A1001 8108 NIESSEN Portafusible
2CLA810800A1001
8108
NIESSEN
10 Pcs.
Portafusible
Fuse holder
Fuse holder 1P - Platform 8100
Automation > Holder for cylindrical fuse
Luxury mechanical mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Mounting Type | Snap mounting |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Poles | 1P |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Design | |
| Design Range | Platform 8100 |
| Arco | |
| Sky Niessen | |
| Dimensions | |
| Product Net Width | 0.149 m |
| Product Net Height | 0.078 m |
| Product Net Depth / Length | 0.225 m |
| Product Net Weight | 0.054 kg |
| Built-In Depth (t2) | 28 mm |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0810800 |
| Material Compliance | |
| RoHS Declaration | 2CLC810800A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39122200 |
