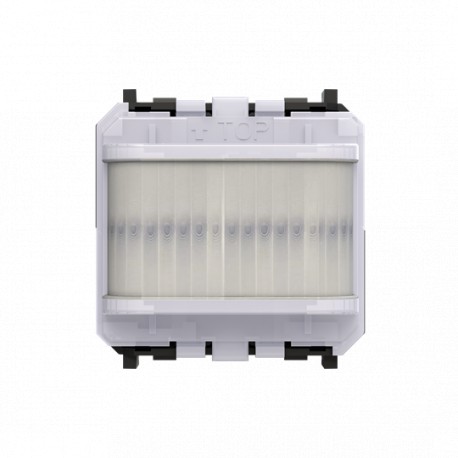

NIESSEN 2CKA006220A0231 2CKA006220A0231 MSA-F-1.1.PB.1 NIESSEN Det.mov./actuador 1 canal, 44x44 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CKA006220A0231 MSA-F-1.1.PB.1 NIESSEN Det.mov./actuador 1 canal, 44x44

2CKA006220A0231

MSA-F-1.1.PB.1

NIESSEN

1 Pcs.

Det.mov./actuador 1 canal, 44x44 Det.mov./1 channel actuator, 44x44 Horizontal 180 ... 180 ° Lighting Control

Automation > Movement sensor for bus system
Home Automation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to execute switching commands based on occupancy, the Niessen 2CKA006220A0231 movement detector and 1-channel actuator integrates into wired building automation systems. These devices allow installers to combine motion sensing and load switching into a single compact wall-mounted unit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting Type: Flush-mounted
  • Mounting Position: vertical
  • Mounting Height: Optimum 1.1 m
  • Modular Components Included: Flush Mounted Insert
  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20
  • Number of Outputs: 1
  • Number of Channels: 1
  • Compatible Bus Systems: free@home (TP)
  • Product Range: free@home
  • Transmission Standard: Twisted Pair Wiring
  • Minimum Switching Time: Switch-On 30 second [unit of time]
  • Sensor Detection Range: Horizontal 180 ... 180 °
  • Rated Current (I n ): 10 A
  • Maximum Switching Power: 2300 W
  • Load Type: Resistive Load

More info

▲
Installation
Mounting TypeFlush-mounted
Mounting Positionvertical
Mounting HeightOptimum 1.1 m
Modular Components IncludedFlush Mounted Insert
Environmental
Ambient Air TemperatureOperation -5 ... +45 °C
Degree of ProtectionIP20
Technical
Number of Outputs1
Number of Channels1
Compatible Bus Systemsfree@home (TP)
Product Rangefree@home
Transmission StandardTwisted Pair Wiring
Minimum Switching TimeSwitch-On 30 second [unit of time]
Sensor Detection RangeHorizontal 180 ... 180 °
Vertical 19 ... 19 °
Electrical
Rated Current (In)10 A
Maximum Switching Power2300 W
Load TypeResistive Load
Dimensions
Product Net Width71 mm
Product Net Height71 mm
Product Net Depth / Length43 mm
Product Net Weight52 g
Built-In Depth (t2)32 mm
Material Compliance
RoHS Declaration2CKA200000E5001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CKA309999E9999
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20250901
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE2CKA100000E1389
Declaration of Conformity - UK-PSTI2CKA410000E0181
Declaration of Conformity - UKCA2CKA400000E0312
EU Data Act Compliance Declaration9AKK108471A4355
Cyber Security Software Support Period2 year
EU Data Act Applicability and ComplianceApplicable - Compliant
External Classifications and Standards
ETIM 9EC001582 - Movement sensor for bus system
ETIM 10EC001582 - Movement sensor for bus system
eClassV11.0 : 27143144
UNSPSC39121801
