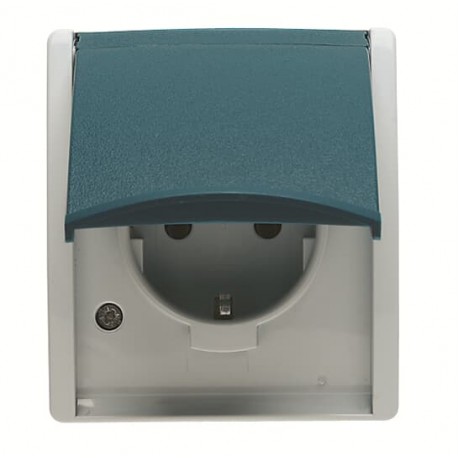

NIESSEN 2CLA308800A1001 2CLA308800A1001 3088 NIESSEN Base Schuko c/tapa View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA308800A1001 3088 NIESSEN Base Schuko c/tapa

2CLA308800A1001

3088

NIESSEN

10 Pcs.

Base Schuko c/tapa Schuko Base w/Lid Socket Schuko with Hinged Lid 16 A Blue - ocean

Automation > Socket outlet
B j e surface

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Niessen protective contact SCHUKO socket (2CLA308800A1001 3088) is utilized in industrial and commercial spaces to supply dependable single-phase power to machinery and hand tools. Surface-mounted receptacles protect internal connections while maintaining safe conductive paths for standard plugs. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting Type: Surface Mounted
  • Type of Fastening: Screw
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP44
  • Number of Phases: 2-phase
  • Connection Type: Screw
  • Socket Outlet Type: Protective Contact (SCHUKO)
  • Number of Batteries: 0
  • Protection Cap Type: Hinged Lid
  • Rated Voltage (U r ): 250 V
  • Rated Current (I n ): 16 A
  • Frequency ( f ): 50...60 Hz
  • Design Range: ocean
  • Surface Finishing: Decor
  • Material: Thermoplastic
  • Legend: Without imprint

More info

▲
Installation
Mounting TypeSurface Mounted
Type of FasteningScrew
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP44
Technical
Number of Phases2-phase
Connection TypeScrew
Socket Outlet TypeProtective Contact (SCHUKO)
Number of Batteries0
Protection Cap TypeHinged Lid
Electrical
Rated Voltage (Ur)250 V
Rated Current (In)16 A
Frequency (f)50...60 Hz
Design
Design Rangeocean
Surface FinishingDecor
Matt
MaterialThermoplastic
Plastic
LegendWithout imprint
Label Space ProvidedWithout Label Space
ColorBlue
Number of Gangs1-gang
Dimensions
Product Net Width0.081 m
Product Net Height0.156 m
Product Net Depth / Length244 mm
Product Net Weight0.142 kg
Ordering
Replaced Product ID (OLD)2CL0308800
Material Compliance
REACH Declaration9AKK108469A7957
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240123
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000125 - Socket outlet
ETIM 10EC000125 - Socket outlet

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
