View larger

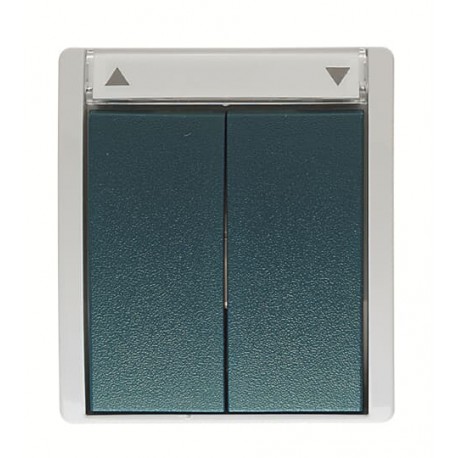

2CLA304400A1001 3044 NIESSEN Doble interrup.pers.con rotulo
2CLA304400A1001
3044
NIESSEN
10 Pcs.
Automation > Venetian blind switch/-push button
B j e surface
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 2CLA304400A1001 3044 NIESSEN Doble interrup.pers.con rotulo is a specialized control switch designed for managing motorized window blinds and shutters in building automation setups. Such devices enable straightforward manual operation of directional loads across residential and commercial wall enclosures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting Type: Surface Mounted
- Type of Fastening: Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP44
- Number of Poles: 1P
- Number of Buttons: 2
- Actuator Type: Rocker
- Connection Type: Screw
- Number of Batteries: 0
- Rated Voltage (U r ): 250 V
- Rated Current (I n ): 10 A
- Design Range: ocean
- Surface Finishing: Decor
- Material: Aluminium
- Label Space Provided: With Label Space
- Color: Blue
More info
▲| Installation | |
|---|---|
| Mounting Type | Surface Mounted |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP44 |
| Technical | |
| Number of Poles | 1P |
| Number of Buttons | 2 |
| Actuator Type | Rocker |
| Connection Type | Screw |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 10 A |
| Design | |
| Design Range | ocean |
| Surface Finishing | Decor |
| Matt | |
| Material | Aluminium |
| Plastic | |
| Label Space Provided | With Label Space |
| Color | Blue |
| Number of Gangs | 1-gang |
| Dimensions | |
| Product Net Width | 0.081 m |
| Product Net Height | 0.156 m |
| Product Net Depth / Length | 0.244 m |
| Product Net Weight | 0.143 kg |
| Ordering | |
| Replaced Product ID (OLD) | 2CL0304400 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000044 - Window blind switch |
| ETIM 10 | EC000044 - Window blind switch |
