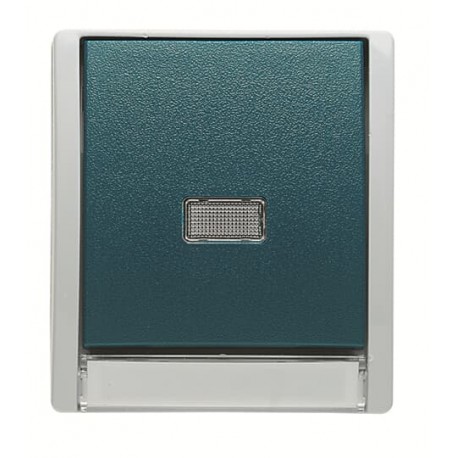

NIESSEN 2CLA300410A1501 2CLA300410A1501 3004.15 NIESSEN Simbolo timbre para pulsador View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA300410A1501 3004.15 NIESSEN Simbolo timbre para pulsador

2CLA300410A1501

3004.15

NIESSEN

20 Pcs.

Simbolo timbre para pulsador Push Button Ring Symbol Accessory Symbol "bell" Symbols - ocean

Automation > Labelling material for domestic switching devices
B j e surface

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

3004.15 NIESSEN Simbolo timbre para pulsador (2CLA300410A1501) is a bell-symbol indicator insert designed to clearly mark push-button actuators used for doorbell or paging circuits. These designation elements are widely integrated into building entry systems to provide immediate visual identification for users. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Printer Type: Inkjet
  • Design Range: ocean
  • Legend: Symbol "bell"
  • Product Net Width: 0.081 m
  • Product Net Height: 0.156 m
  • Product Net Depth / Length: 0.244 m
  • Product Net Weight: 0.002 kg
  • Replaced Product ID (OLD): 2CL0300415
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • EU Data Act Applicability and Compliance: Not Applicable
  • ETIM 9: EC000141 - Labelling material for domestic switching devices
  • ETIM 10: EC000141 - Labelling material for domestic switching devices

More info

▲
Installation
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Technical
Printer TypeInkjet
Design
Design Rangeocean
LegendSymbol "bell"
Dimensions
Product Net Width0.081 m
Product Net Height0.156 m
Product Net Depth / Length0.244 m
Product Net Weight0.002 kg
Ordering
Replaced Product ID (OLD)2CL0300415
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000141 - Labelling material for domestic switching devices
ETIM 10EC000141 - Labelling material for domestic switching devices
