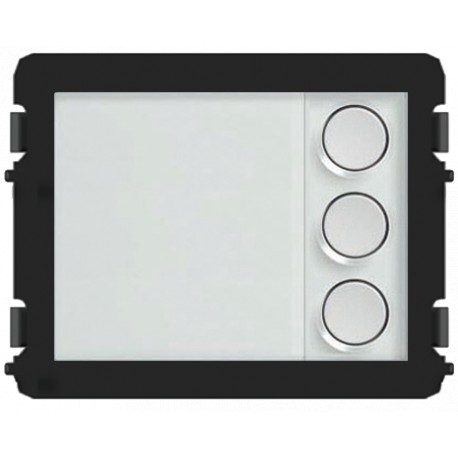

NIESSEN 2TMA210010N0026 2TMA210010N0026 W2103 NIESSEN Module 3 buttons View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2TMA210010N0026 W2103 NIESSEN Module 3 buttons

2TMA210010N0026

W2103

NIESSEN

1 Pcs.

Module 3 buttons Module 3 pushbuttons Pushbutton module, round button, 3 pushbuttons, 3, white

Automation > Functional module for door communication

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2TMA210010N0026 W2103 NIESSEN Module 3 buttons is a functional module for door communication manufactured by Niessen, designed to expand call routing options on intercom panels. Multi-button assemblies are routinely utilized in multi-tenant buildings to direct calls to specific apartments or offices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of Protection: IP54
  • Number of Buttons: 3
  • Operational Voltage: 28 V
  • Input Voltage Type: DC
  • Material: Plastic
  • Color: white
  • Product Net Width: 72 mm
  • Product Net Height: 97 mm
  • Product Net Depth / Length: 31 mm
  • Product Net Weight: 110 g
  • Environmental Product Declaration - EPD: 9AKK108470A8450
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
  • ETIM 9: EC000349 - Functional module for door communication
  • ETIM 10: EC000349 - Functional module for door communication

More info

▲
Environmental
Degree of ProtectionIP54
Technical
Number of Buttons3
Electrical
Operational Voltage28 V
Input Voltage TypeDC
Design
MaterialPlastic
Colorwhite
Dimensions
Product Net Width72 mm
Product Net Height97 mm
Product Net Depth / Length31 mm
Product Net Weight110 g
Circular Value
Environmental Product Declaration - EPD9AKK108470A8450
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
External Classifications and Standards
ETIM 9EC000349 - Functional module for door communication
ETIM 10EC000349 - Functional module for door communication
