2TMA210010A0032 W2521.2 NIESSEN Placa vídeo mini, 1 puls, ID, superficie
2TMA210010A0032
W2521.2
NIESSEN
1 Pcs.
Automation > Push button panel door communication
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

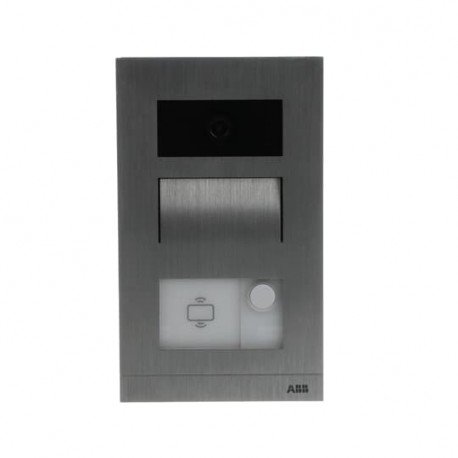

Designated as a Niessen Placa vídeo mini, 1 puls, ID, superficie, bearing part number 2TMA210010A0032, this hardware item functions as a compact surface-mounted entrance panel with integrated video capabilities. Outdoor video panels are installed at property perimeters to capture visual data and establish communication with residents inside the facility.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2TMU200000M0001
- Mounting Type: Surface Mounted
- Degree of Protection: IP54
- Number of Buttons: 1
- Product Range: Welcome
- Transmission Standard: 2-Wire
- Terminal Type: Screwless Terminals
- Surface Finishing: Brushed
- Button Material: Plastic
- Material: Aluminium
- Color: aluminium
- Product Net Width: 99 mm
- Product Net Height: 168 mm
- Product Net Depth / Length: 26 mm
- Product Net Weight: 375 g
- E-Number (Norway): 6307493
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2TMU200000M0001 |
| 2TMU200000M0004 | |
| 2TMU200000M0031 | |
| Mounting Type | Surface Mounted |
| Environmental | |
| Degree of Protection | IP54 |
| Technical | |
| Number of Buttons | 1 |
| Product Range | Welcome |
| Transmission Standard | 2-Wire |
| Terminal Type | Screwless Terminals |
| Design | |
| Surface Finishing | Brushed |
| Button Material | Plastic |
| Material | Aluminium |
| Color | aluminium |
| Dimensions | |
| Product Net Width | 99 mm |
| Product Net Height | 168 mm |
| Product Net Depth / Length | 26 mm |
| Product Net Weight | 375 g |
| Ordering | |
| E-Number (Norway) | 6307493 |
| Material Compliance | |
| RoHS Declaration | 2TMD081215X2102 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 0036943c-b0c1-4586-860d-56b68dfcd6b3 Italy |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TMD082113X0048 |
| EU Data Act Compliance Declaration | 9AKK108471A4300 |
| EU Data Act Applicability and Compliance | 2025 Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001351 - Push button panel door communication |
| ETIM 10 | EC001351 - Push button panel door communication |
| UNSPSC | 43221525 |
