2TMA130160N0010 W51381CR NIESSEN Módulo display con lector de tarjeta ID
2TMA130160N0010
W51381CR
NIESSEN
1 Pcs.
Automation > Functional module for door communication
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

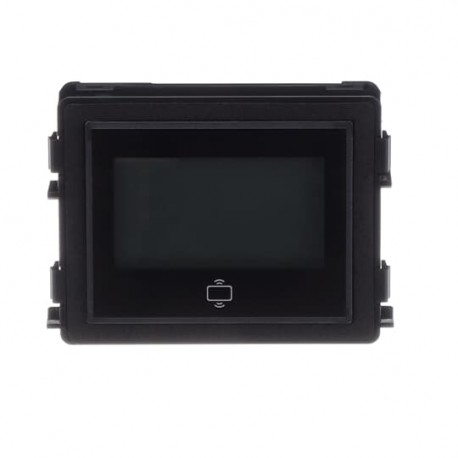

A Niessen 2TMA130160N0010 W51381CR display module integrates a built-in ID card reader to support secure access control workflows. Display reader units are commonly deployed in commercial and residential entry panels to facilitate both visual directory navigation and contactless credential verification.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of Protection: IP54
- Product Range: Welcome
- Connection Type: Ribbon Cable
- Operational Voltage: 28 V
- Input Voltage Type: DC
- Material: Plastic
- Color: black
- Product Net Width: 25 mm
- Product Net Height: 97 mm
- Product Net Depth / Length: 72 mm
- Product Net Weight: 104 g
- Screen Size: 2.5 in
- Building Information Modeling – BIM: 9AKK108469A6985
- E-Number (Finland): 2818950
- E-Number (Norway): 6307431
- Environmental Product Declaration - EPD: 9AKK108470A8451
More info
▲| Installation | |
|---|---|
| Environmental | |
| Degree of Protection | IP54 |
| Technical | |
| Product Range | Welcome |
| Connection Type | Ribbon Cable |
| Electrical | |
| Operational Voltage | 28 V |
| Input Voltage Type | DC |
| Design | |
| Material | Plastic |
| Color | black |
| Dimensions | |
| Product Net Width | 25 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 104 g |
| Screen Size | 2.5 in |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108469A6985 |
| 9AKK108469A6986 | |
| 9AKK108469A6987 | |
| Ordering | |
| E-Number (Finland) | 2818950 |
| E-Number (Norway) | 6307431 |
| Circular Value | |
| Environmental Product Declaration - EPD | 9AKK108470A8451 |
| Material Compliance | |
| RoHS Declaration | 2TMD081215X2102 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TMD081313X0035 |
| EU Data Act Compliance Declaration | 9AKK108471A4300 |
| EU Data Act Applicability and Compliance | 2025 Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000349 - Functional module for door communication |
| ETIM 10 | EC000349 - Functional module for door communication |
| UNSPSC | 43221525 |
