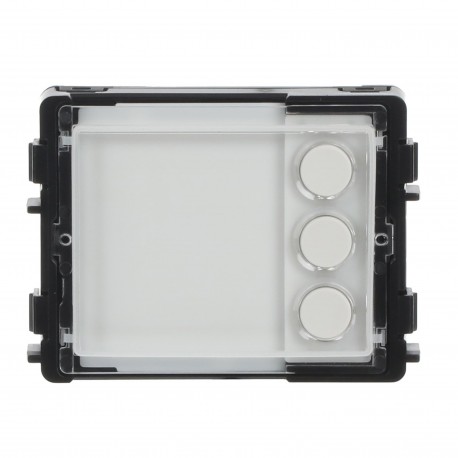

NIESSEN 2TMA130160N0008 2TMA130160N0008 W51382RP3 NIESSEN Módulo 3 pulsadores, con lector NFC/IC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2TMA130160N0008 W51382RP3 NIESSEN Módulo 3 pulsadores, con lector NFC/IC

2TMA130160N0008

W51382RP3

NIESSEN

1 Pcs.

Módulo 3 pulsadores, con lector NFC/IC Module 3 buttons, with NFC/IC reader Round pushbutton module, 3, white, RFID

Automation > Functional module for door communication

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2TMA130160N0008 W51382RP3 NIESSEN Módulo 3 pulsadores, con lector NFC/IC is a functional module for door communication produced by Niessen, combining a three-button call layout with an integrated proximity card reader. Such units are deployed at facility entrances requiring multi-tenant call options alongside badge authentication. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of Protection: IP54
  • Number of Buttons: 3
  • Product Range: Welcome
  • Connection Type: Ribbon Cable
  • Operational Voltage: 28 V
  • Input Voltage Type: DC
  • Material: Plastic
  • Color: white
  • Product Net Width: 97 mm
  • Product Net Height: 72 mm
  • Product Net Depth / Length: 28 mm
  • Product Net Weight: 98 g
  • Building Information Modeling – BIM: 9AKK108469A6985
  • Environmental Product Declaration - EPD: 9AKK108470A8450
  • RoHS Declaration: 2TMD081215X2102
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

More info

▲
Installation
Environmental
Degree of ProtectionIP54
Technical
Number of Buttons3
Product RangeWelcome
Welcome IP
Connection TypeRibbon Cable
Electrical
Operational Voltage28 V
Input Voltage TypeDC
Design
MaterialPlastic
Colorwhite
Dimensions
Product Net Width97 mm
Product Net Height72 mm
Product Net Depth / Length28 mm
Product Net Weight98 g
Engineering
Building Information Modeling – BIM9AKK108469A6985
9AKK108469A6986
9AKK108469A6987
Circular Value
Environmental Product Declaration - EPD9AKK108470A8450
Material Compliance
RoHS Declaration2TMD081215X2102
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH InformationNo data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE2TMD081313X0037
Declaration of Conformity - UK-PSTIABB2TMA130160N0008
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000349 - Functional module for door communication
ETIM 10EC000349 - Functional module for door communication
UNSPSC43221525

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
