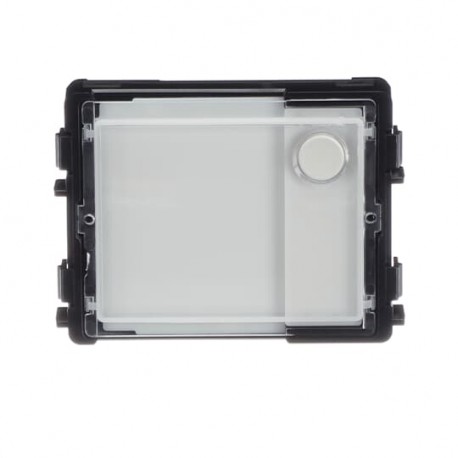

2TMA130160N0006 W51382RP1 NIESSEN Módulo 1 pulsador, con lector NFC/IC
2TMA130160N0006
W51382RP1
NIESSEN
1 Pcs.
Automation > Functional module for door communication
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2TMA130160N0006 W51382RP1 NIESSEN Módulo 1 pulsador, con lector NFC/IC is a functional module for door communication built by Niessen, featuring an integrated proximity reading mechanism alongside call capabilities. These units serve security entry points where both manual calling and contactless badge access are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of Protection: IP54
- Number of Buttons: 1
- Product Range: Welcome
- Operational Voltage: 28 V
- Input Voltage Type: DC
- Material: Plastic
- Color: white
- Product Net Width: 97 mm
- Product Net Height: 72 mm
- Product Net Depth / Length: 28 mm
- Product Net Weight: 98 g
- Building Information Modeling – BIM: 9AKK108469A6985
- E-Number (Finland): 2818958
- Environmental Product Declaration - EPD: 9AKK108470A8450
- RoHS Declaration: 2TMD081215X2102
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Installation | |
|---|---|
| Environmental | |
| Degree of Protection | IP54 |
| Technical | |
| Number of Buttons | 1 |
| Product Range | Welcome |
| Welcome IP | |
| Electrical | |
| Operational Voltage | 28 V |
| Input Voltage Type | DC |
| Design | |
| Material | Plastic |
| Color | white |
| Dimensions | |
| Product Net Width | 97 mm |
| Product Net Height | 72 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 98 g |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108469A6985 |
| 9AKK108469A6986 | |
| 9AKK108469A6987 | |
| Ordering | |
| E-Number (Finland) | 2818958 |
| Circular Value | |
| Environmental Product Declaration - EPD | 9AKK108470A8450 |
| Material Compliance | |
| RoHS Declaration | 2TMD081215X2102 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TMD081313X0037 |
| Declaration of Conformity - UK-PSTI | ABB2TMA130160N0006 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000349 - Functional module for door communication |
| ETIM 10 | EC000349 - Functional module for door communication |
| UNSPSC | 43221525 |
