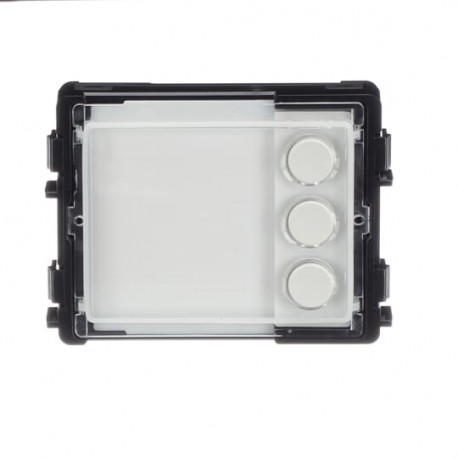

2TMA130160N0005 W51381RP3 NIESSEN Módulo 3 pulsadores
2TMA130160N0005
W51381RP3
NIESSEN
1 Pcs.
Automation > Functional module for door communication
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Part of the Niessen Welcome product family, the 3-button module 2TMA130160N0005 provides reliable call input options for building intercom stations. Ribbon cable architecture allows this unit to interface seamlessly with adjacent audio or video modules.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Ambient Air Temperature: Operation -40...+55 °C
- Degree of Protection: IP54
- Number of Buttons: 3
- Product Range: Welcome
- Connection Type: Ribbon Cable
- Operational Voltage: 28 V
- Input Voltage Type: DC
- Material: Plastic
- Color: white
- Product Net Width: 97 mm
- Product Net Height: 72 mm
- Product Net Depth / Length: 28 mm
- Product Net Weight: 95 g
- Building Information Modeling – BIM: 9AKK108469A6985
- E-Number (Norway): 6307441
- Environmental Product Declaration - EPD: 9AKK108470A8450
More info
▲| Installation | |
|---|---|
| Environmental | |
| Ambient Air Temperature | Operation -40...+55 °C |
| Degree of Protection | IP54 |
| Technical | |
| Number of Buttons | 3 |
| Product Range | Welcome |
| Welcome IP | |
| Connection Type | Ribbon Cable |
| Electrical | |
| Operational Voltage | 28 V |
| Input Voltage Type | DC |
| Design | |
| Material | Plastic |
| Color | white |
| Dimensions | |
| Product Net Width | 97 mm |
| Product Net Height | 72 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 95 g |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108469A6985 |
| 9AKK108469A6986 | |
| 9AKK108469A6987 | |
| Ordering | |
| E-Number (Norway) | 6307441 |
| Circular Value | |
| Environmental Product Declaration - EPD | 9AKK108470A8450 |
| Material Compliance | |
| RoHS Declaration | 2TMD081215X2102 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TMD081313X0034 |
| Declaration of Conformity - UK-PSTI | ABB2TMA130160N0005 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000349 - Functional module for door communication |
| ETIM 10 | EC000349 - Functional module for door communication |
| UNSPSC | 43221525 |
