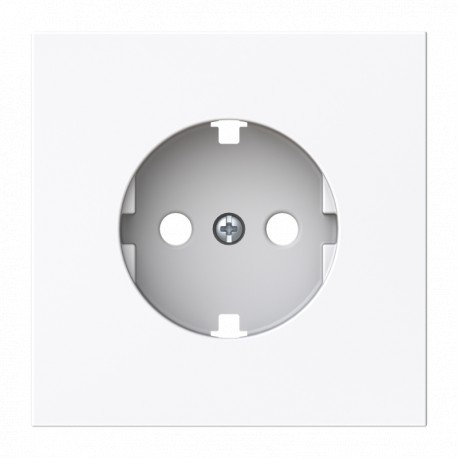

NIESSEN 2CLA888800A1101 2CLA888800A1101 8888 BL NIESSEN Schuko T.T. side BL socket base cover View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA888800A1101 8888 BL NIESSEN Schuko T.T. side BL socket base cover

2CLA888800A1101

8888 BL

NIESSEN

20 Pcs.

Schuko T.T. side BL socket base cover Cover plate Schuko SO Central cover plate for Socket outlet None White - Vega

Automation > Control element/cover plate for domestic switching devices
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Niessen 2CLA888800A1101 8888 BL NIESSEN Schuko T.T. side BL socket base cover is a protective architectural faceplate used to finish wall-mounted power outlets in residential and commercial wiring installations. Faceplates of this type provide a clean aesthetic barrier while granting secure physical access to standard electrical sockets. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 1TXA60027C0701
  • Type of Fastening: Clamp
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 1TXA60027C0701
  • Application: Socket outlet
  • Design Range: Vega
  • Surface Finishing: Untreated
  • Material: Plastic
  • RAL Number: Similar to RAL 9016
  • Color: White
  • Product Net Width: 71 mm
  • Product Net Height: 71 mm
  • Product Net Depth / Length: 25 mm
  • Product Net Weight: 0.021 kg
  • Dimension Diagram: 1TXA60027C0701
  • Building Information Modeling – BIM: Y

More info

▲
Installation
Instructions and Manuals1TXA60027C0701
Type of FasteningClamp
Environmental
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information1TXA60027C0701
ApplicationSocket outlet
Design
Design RangeVega
Surface FinishingUntreated
Glossy
MaterialPlastic
Thermoplastic
LegendNone
RAL NumberSimilar to RAL 9016
ColorWhite
Dimensions
Product Net Width71 mm
Product Net Height71 mm
Product Net Depth / Length25 mm
Product Net Weight0.021 kg
Dimension Diagram1TXA60027C0701
Engineering
Building Information Modeling – BIMY
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A8914
Circular Value
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 67.31 %
Circular Design Principles Ecodesign9AKK108468A3800
Sustainable Material Content in Product (wt. %)Mechanically Recycled Polymer - 68.7 %
Sustainable Material Content in Packaging (wt. %)92 %
Extended Product LifetimeProduct Modularity
End Of Life Disassembling Instructions9AKK108471A7080
Environmental Product Declaration - EPD9AKK108471A6773
Material Compliance
RoHS Declaration2CLC8888BLROH25
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CLC8888BLSVH25
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250121
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
UNSPSC39121704
