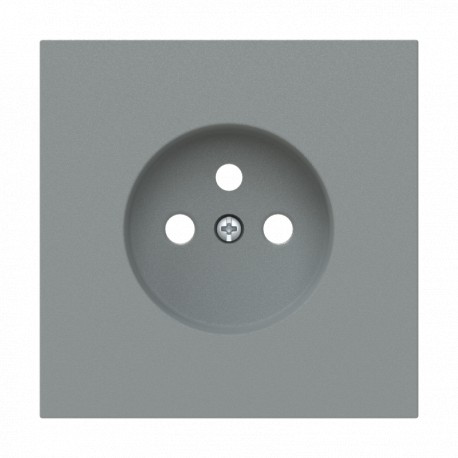

2CLA888700A1601 8887 GN NIESSEN French T.T. GN socket base cover
2CLA888700A1601
8887 GN
NIESSEN
20 Pcs.
Automation > Control element/cover plate for domestic switching devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen 2CLA888700A1601 8887 GN NIESSEN French T.T. GN socket base cover serves as a protective and aesthetic faceplate for standard power receptacles in modern electrical infrastructure. These socket outlet covers shield internal electrical terminals while providing a finished surface for residential and commercial distribution layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 1TXA60027C0701
- Type of Fastening: Clamp
- Degree of Protection: IP20
- Data Sheet, Technical Information: 1TXA60027C0701
- Application: Socket outlet
- Design Range: Vega
- Surface Finishing: Decor
- Material: Plastic
- Color: Grey
- Product Net Width: 70.7 mm
- Product Net Height: 70.7 mm
- Product Net Depth / Length: 29.219 mm
- Product Net Weight: 0.019 kg
- Dimension Diagram: 1TXA60027C0701
- Building Information Modeling – BIM: Y
- ABB EcoSolutions: Yes
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Type of Fastening | Clamp |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Application | Socket outlet |
| Design | |
| Design Range | Vega |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | None |
| Color | Grey |
| Dimensions | |
| Product Net Width | 70.7 mm |
| Product Net Height | 70.7 mm |
| Product Net Depth / Length | 29.219 mm |
| Product Net Weight | 0.019 kg |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A8914 |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 67.31 % |
| Circular Design Principles Ecodesign | 9AKK108468A3800 |
| Sustainable Material Content in Product (wt. %) | Mechanically Recycled Polymer - 69.44 % |
| Sustainable Material Content in Packaging (wt. %) | 92 % |
| Extended Product Lifetime | Product Modularity |
| End Of Life Disassembling Instructions | 9AKK108471A7080 |
| Environmental Product Declaration - EPD | 9AKK108471A6773 |
| Material Compliance | |
| RoHS Declaration | 2CLC8887GNROH25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC8887GNSVH25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
