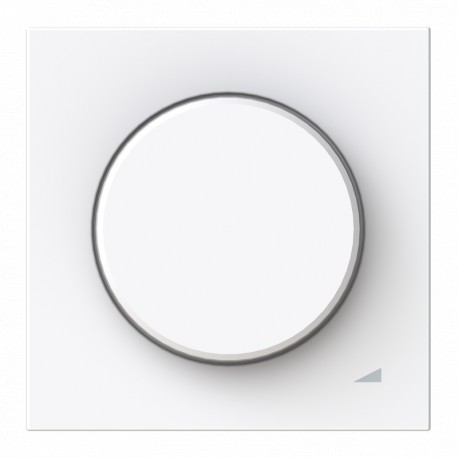

NIESSEN 2CLA886020A1001 2CLA886020A1001 8860.2 BT NIESSEN Lid+BT rotary regulator button View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA886020A1001 8860.2 BT NIESSEN Lid+BT rotary regulator button

2CLA886020A1001

8860.2 BT

NIESSEN

5 Pcs.

Lid+BT rotary regulator button Rocker Various symbols for Switch/dimmer Turn button White - Vega

Automation > Control element/cover plate for domestic switching devices
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a switch/dimmer regulator interface, the Niessen 2CLA886020A1001 Lid+BT rotary regulator button houses the control knob and cover assembly for integrated rotary dimming units. These parts combine mechanical turning control with functional faceplate aesthetics.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 1TXA60027C0701
  • Type of Fastening: Clamp
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 1TXA60027C0701
  • Application: Switch/dimmer
  • Design Range: Vega
  • Surface Finishing: Decor
  • Material: Plastic
  • Legend: Various symbols
  • RAL Number: Similar to RAL 9016
  • Color: White
  • Product Net Width: 70.7 mm
  • Product Net Height: 70.7 mm
  • Product Net Depth / Length: 16.2 mm
  • Product Net Weight: 0.022 kg
  • Dimension Diagram: 1TXA60027C0701

More info

▲
Installation
Instructions and Manuals1TXA60027C0701
Type of FasteningClamp
Environmental
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information1TXA60027C0701
ApplicationSwitch/dimmer
Design
Design RangeVega
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendVarious symbols
RAL NumberSimilar to RAL 9016
ColorWhite
Dimensions
Product Net Width70.7 mm
Product Net Height70.7 mm
Product Net Depth / Length16.2 mm
Product Net Weight0.022 kg
Dimension Diagram1TXA60027C0701
Engineering
Building Information Modeling – BIMY
Material Compliance
RoHS Declaration2CLC88602BTRO25
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CLC88602BTSV25
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250121
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
UNSPSC39121704
