View larger

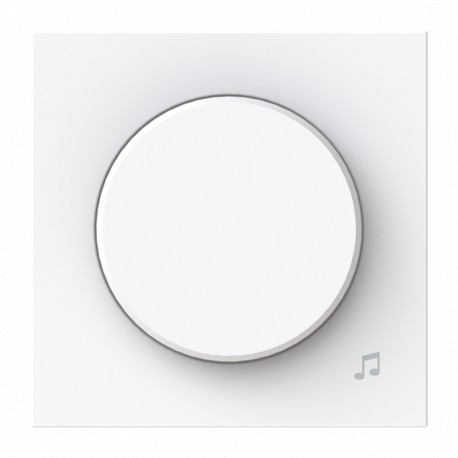

2CLA885900A1101 8859 BL NIESSEN BL potentiometer button cover
2CLA885900A1101
8859 BL
NIESSEN
1 Pcs.
Automation > Control element/cover plate for domestic switching devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Niessen, this potentiometer button cover (part number 2CLA885900A1101) is engineered to fit rotary loudness or dimming controls in Vega series installations. It protects the underlying adjustment spindle while providing smooth, precise manual control for audio or lighting systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 1TXA60027C0701
- Type of Fastening: Clamp
- Degree of Protection: IP20
- Data Sheet, Technical Information: 1TXA60027C0701
- Application: Loudness control
- Design Range: Vega
- Surface Finishing: Untreated
- Material: Plastic
- Legend: Various symbols
- RAL Number: Similar to RAL 9016
- Color: White
- Product Net Width: 70.7 mm
- Product Net Height: 70.7 mm
- Product Net Depth / Length: 16.2 mm
- Product Net Weight: 0.022 kg
- Dimension Diagram: 1TXA60027C0701
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Type of Fastening | Clamp |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Application | Loudness control |
| Design | |
| Design Range | Vega |
| Surface Finishing | Untreated |
| Glossy | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Various symbols |
| RAL Number | Similar to RAL 9016 |
| Color | White |
| Dimensions | |
| Product Net Width | 70.7 mm |
| Product Net Height | 70.7 mm |
| Product Net Depth / Length | 16.2 mm |
| Product Net Weight | 0.022 kg |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| Material Compliance | |
| RoHS Declaration | 2CLC8859BLROH25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC8859BLSVH25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
