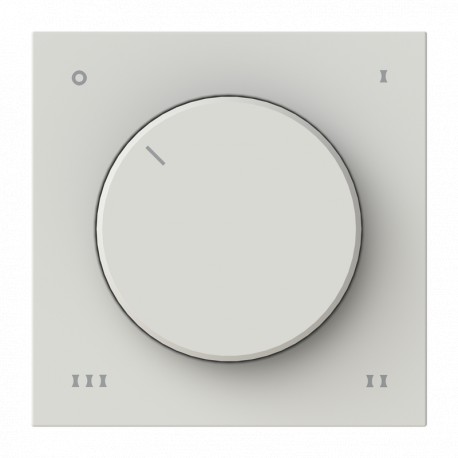

2CLA885400A6201 8854 DN NIESSEN Lid+button rotary switch DN
2CLA885400A6201
8854 DN
NIESSEN
1 Pcs.
Automation > Control element/cover plate for domestic switching devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Functioning as a Niessen 2CLA885400A6201 8854 DN NIESSEN Lid+button rotary switch DN, this hardware assembly serves as the user interface for multi-position rotary control units. Rotary switch covers guide manual turning movements while protecting the switch mechanism from environmental exposure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 1TXA60027C0701
- Type of Fastening: Clamp
- Degree of Protection: IP20
- Data Sheet, Technical Information: 1TXA60027C0701
- Design Range: Vega
- Surface Finishing: Decor
- Material: Plastic
- Legend: Symbol "3-level switch"
- Color: Dune
- Product Net Width: 70.7 mm
- Product Net Height: 70.7 mm
- Product Net Depth / Length: 16.8 mm
- Product Net Weight: 0.022 kg
- Dimension Diagram: 1TXA60027C0701
- Building Information Modeling – BIM: Y
- RoHS Declaration: 2CLC8854DNROH25
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Type of Fastening | Clamp |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Design | |
| Design Range | Vega |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Symbol "3-level switch" |
| Color | Dune |
| Dimensions | |
| Product Net Width | 70.7 mm |
| Product Net Height | 70.7 mm |
| Product Net Depth / Length | 16.8 mm |
| Product Net Weight | 0.022 kg |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| Material Compliance | |
| RoHS Declaration | 2CLC8854DNROH25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC8854DNSVH25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
