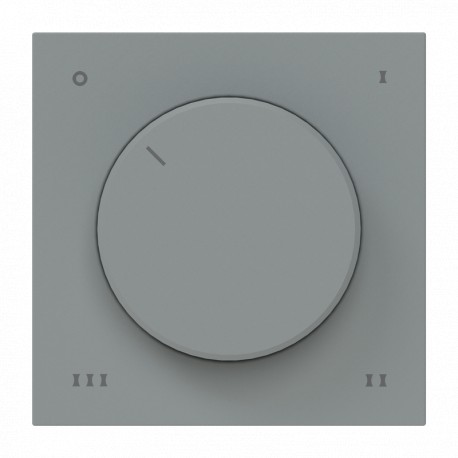

NIESSEN 2CLA885400A1601 2CLA885400A1601 8854 GN NIESSEN GN rotary switch cap+button View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA885400A1601 8854 GN NIESSEN GN rotary switch cap+button

2CLA885400A1601

8854 GN

NIESSEN

1 Pcs.

GN rotary switch cap+button Cover plate Symbol "3-level switch" Central cover plate Grey - Vega

Automation > Control element/cover plate for domestic switching devices
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Niessen 2CLA885400A1601 8854 GN NIESSEN GN rotary switch cap+button is a functional rotary switch accessory designed to regulate multi-step electrical devices and dimming systems in commercial or residential settings. These operator interfaces provide tactile rotational feedback for precise manual adjustments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 1TXA60027C0701
  • Type of Fastening: Clamp
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 1TXA60027C0701
  • Design Range: Vega
  • Surface Finishing: Decor
  • Material: Plastic
  • Legend: Symbol "3-level switch"
  • Color: Grey
  • Product Net Width: 70.7 mm
  • Product Net Height: 70.7 mm
  • Product Net Depth / Length: 16.8 mm
  • Product Net Weight: 0.022 kg
  • Dimension Diagram: 1TXA60027C0701
  • Building Information Modeling – BIM: Y
  • RoHS Declaration: 2CLC8854GNROH25

More info

▲
Installation
Instructions and Manuals1TXA60027C0701
Type of FasteningClamp
Environmental
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information1TXA60027C0701
Design
Design RangeVega
Surface FinishingDecor
Matt
MaterialPlastic
Thermoplastic
LegendSymbol "3-level switch"
ColorGrey
Dimensions
Product Net Width70.7 mm
Product Net Height70.7 mm
Product Net Depth / Length16.8 mm
Product Net Weight0.022 kg
Dimension Diagram1TXA60027C0701
Engineering
Building Information Modeling – BIMY
Material Compliance
RoHS Declaration2CLC8854GNROH25
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CLC8854GNSVH25
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250121
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
UNSPSC39121704
