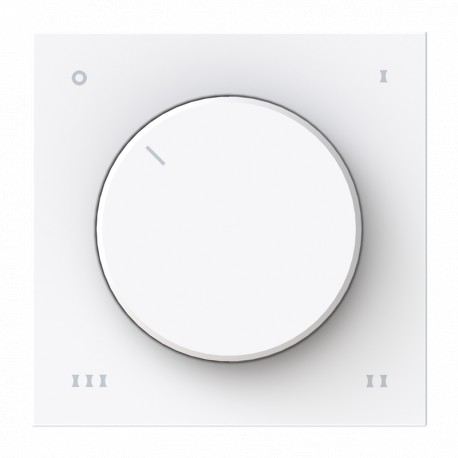

2CLA885400A1001 8854 BT NIESSEN BT rotary switch cap+button
2CLA885400A1001
8854 BT
NIESSEN
1 Pcs.
Automation > Control element/cover plate for domestic switching devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen BT rotary switch cap+button with part number 2CLA885400A1001 serves as the user-operated mechanical interface for specialized multi-position switching mechanisms. Rotary operating elements are routinely integrated into modern electrical wiring systems to regulate fan speeds, lighting intensity levels, or mode selections.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 1TXA60027C0701
- Type of Fastening: Clamp
- Degree of Protection: IP20
- Data Sheet, Technical Information: 1TXA60027C0701
- Design Range: Vega
- Surface Finishing: Decor
- Material: Plastic
- Legend: Symbol "3-level switch"
- RAL Number: Similar to RAL 9016
- Color: White
- Product Net Width: 70.7 mm
- Product Net Height: 70.7 mm
- Product Net Depth / Length: 16.8 mm
- Product Net Weight: 0.022 kg
- Dimension Diagram: 1TXA60027C0701
- Building Information Modeling – BIM: Y
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Type of Fastening | Clamp |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Design | |
| Design Range | Vega |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Legend | Symbol "3-level switch" |
| RAL Number | Similar to RAL 9016 |
| Color | White |
| Dimensions | |
| Product Net Width | 70.7 mm |
| Product Net Height | 70.7 mm |
| Product Net Depth / Length | 16.8 mm |
| Product Net Weight | 0.022 kg |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| Material Compliance | |
| RoHS Declaration | 2CLC8854BTROH25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC8854BTSVH25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000011 - Control element/cover plate for domestic switching devices |
| ETIM 10 | EC000011 - Control element/cover plate for domestic switching devices |
| UNSPSC | 39121704 |
