View larger
Images are for illustrative purposes only. Please refer to data sheet for details

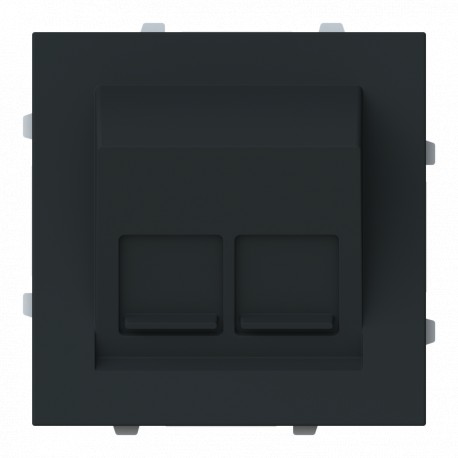

2CLA881680A1501 8816.8 NT NIESSEN Slanted lid 2 support with NT shutter
2CLA881680A1501
8816.8 NT
NIESSEN
5 Pcs.
Slanted lid 2 support with NT shutter
Cover plate For data connection housing 2 gang Black - Vega
Automation > Insert/cover for communication technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Mounting Type | Flush mounted (plaster) |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Application | For data connection housing |
| Type of Indicator | Without indication field |
| Outlet Orientation | Angled |
| Design | |
| Design Range | Vega |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Color | Black |
| Dimensions | |
| Product Net Width | 74 mm |
| Product Net Height | 74 mm |
| Product Net Depth / Length | 22.952 mm |
| Product Net Weight | 0.0183 kg |
| Built-In Depth (t2) | 40 mm |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| ABB EcoSolutions | |
| EcoSolutions Profile | 9AKK108471A8914 |
| Material Compliance | |
| RoHS Declaration | 2CLC88168NTRO25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC88168NTSV25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121704 |
