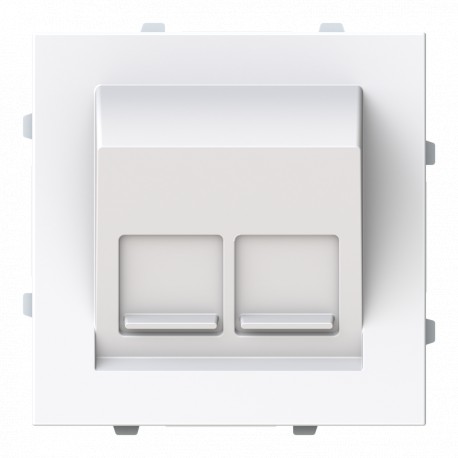

NIESSEN 2CLA881680A1101 2CLA881680A1101 8816.8 BL NIESSEN Slanted lid 2 sop. with BL shutter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA881680A1101 8816.8 BL NIESSEN Slanted lid 2 sop. with BL shutter

2CLA881680A1101

8816.8 BL

NIESSEN

5 Pcs.

Slanted lid 2 sop. with BL shutter Cover plate For data connection housing 2 gang White - Vega

Automation > Insert/cover for communication technology
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Niessen 2CLA881680A1101 8816.8 BL Slanted lid 2 sop. with BL shutter provides an angled housing solution with an integrated shutter for data connection modules. Slanted designs help reduce bending stress on connected patch cables in tight wall box installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 1TXA60027C0701
  • Mounting Type: Flush mounted (plaster)
  • Type of Fastening: Mounting with Screw
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 1TXA60027C0701
  • Application: For data connection housing
  • Type of Indicator: Without indication field
  • Outlet Orientation: Angled
  • Design Range: Vega
  • Surface Finishing: Untreated
  • Material: Plastic
  • Color: White
  • Product Net Width: 74 mm
  • Product Net Height: 74 mm
  • Product Net Depth / Length: 22.952 mm
  • Product Net Weight: 0.0183 kg

More info

▲
Installation
Instructions and Manuals1TXA60027C0701
Mounting TypeFlush mounted (plaster)
Type of FasteningMounting with Screw
Environmental
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information1TXA60027C0701
ApplicationFor data connection housing
Type of IndicatorWithout indication field
Outlet OrientationAngled
Design
Design RangeVega
Surface FinishingUntreated
Glossy
MaterialPlastic
Thermoplastic
ColorWhite
Dimensions
Product Net Width74 mm
Product Net Height74 mm
Product Net Depth / Length22.952 mm
Product Net Weight0.0183 kg
Built-In Depth (t2)40 mm
Dimension Diagram1TXA60027C0701
Engineering
Building Information Modeling – BIMY
ABB EcoSolutions
EcoSolutions Profile9AKK108471A8914
Material Compliance
RoHS Declaration2CLC88168BLRO25
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CLC88168BLSV25
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250121
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000018 - Insert/cover for communication technology
ETIM 10EC000018 - Insert/cover for communication technology
UNSPSC39121704

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
