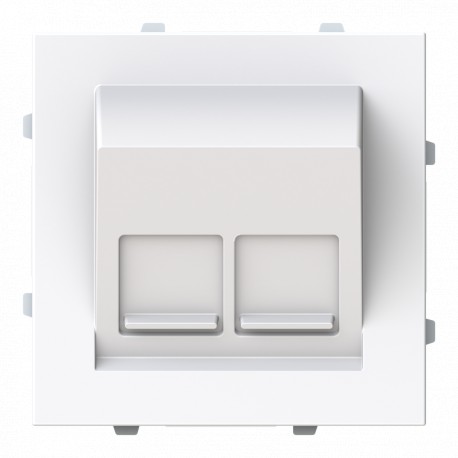

2CLA881680A1001 8816.8 BT NIESSEN Slanted lid 2 support with BT shutter
2CLA881680A1001
8816.8 BT
NIESSEN
5 Pcs.
Automation > Insert/cover for communication technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 2CLA881680A1001 8816.8 BT NIESSEN Slanted lid 2 support with BT shutter is an angled data interface support frame fitted with a protective shutter for structured cabling networks. Angled data outlets reduce strain on connected patch cords, making them ideal for high-density wall boxes and confined trunking paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 1TXA60027C0701
- Mounting Type: Flush mounted (plaster)
- Type of Fastening: Mounting with Screw
- Degree of Protection: IP20
- Data Sheet, Technical Information: 1TXA60027C0701
- Application: For data connection housing
- Type of Indicator: Without indication field
- Outlet Orientation: Angled
- Design Range: Vega
- Surface Finishing: Decor
- Material: Plastic
- Color: White
- Product Net Width: 74 mm
- Product Net Height: 74 mm
- Product Net Depth / Length: 22.952 mm
- Product Net Weight: 0.0183 kg
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 1TXA60027C0701 |
| Mounting Type | Flush mounted (plaster) |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 1TXA60027C0701 |
| Application | For data connection housing |
| Type of Indicator | Without indication field |
| Outlet Orientation | Angled |
| Design | |
| Design Range | Vega |
| Surface Finishing | Decor |
| Matt | |
| Material | Plastic |
| Thermoplastic | |
| Color | White |
| Dimensions | |
| Product Net Width | 74 mm |
| Product Net Height | 74 mm |
| Product Net Depth / Length | 22.952 mm |
| Product Net Weight | 0.0183 kg |
| Built-In Depth (t2) | 40 mm |
| Dimension Diagram | 1TXA60027C0701 |
| Engineering | |
| Building Information Modeling – BIM | Y |
| ABB EcoSolutions | |
| EcoSolutions Profile | 9AKK108471A8914 |
| Material Compliance | |
| RoHS Declaration | 2CLC88168BTRO25 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CLC88168BTSV25 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121704 |
