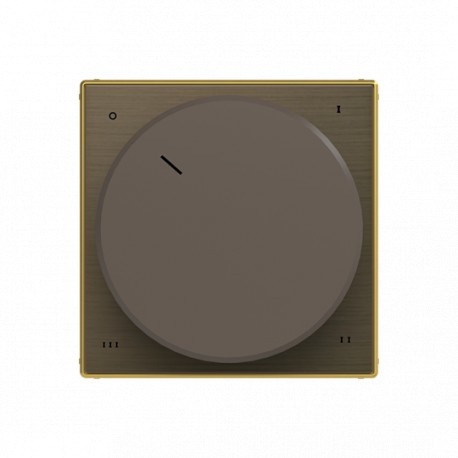

NIESSEN 2CLA855400A1201 2CLA855400A1201 8554 OE NIESSEN Tapa+botón conmutador rotativo OE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA855400A1201 8554 OE NIESSEN Tapa+botón conmutador rotativo OE

2CLA855400A1201

8554 OE

NIESSEN

1 Pcs.

Tapa+botón conmutador rotativo OE OE Rotary Switch Cover + Button Cover plate Symbol "4-level switch" for Level switch, Turn button Gold - Sky Niessen

Automation > Control element/cover plate for domestic switching devices
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A rotary switch cover and button assembly designed to act as an interface for level switching applications within residential or commercial building installations. This metal component from Niessen (2CLA855400A1201) integrates cleanly into the Sky Niessen design line, featuring a dedicated symbol for multi-level control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX850009A1001
  • Type of Fastening: Clamp
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Application: Level switch
  • Design Range: Sky Niessen
  • Surface Finishing: Metallic
  • Material: Metal
  • Legend: Symbol "4-level switch"
  • Color: Gold
  • Product Net Width: 0.054 m
  • Product Net Height: 0.054 m
  • Product Net Depth / Length: 0.073 m
  • Product Net Weight: 0.031 kg
  • RoHS Declaration: 2CLC855400A1201

More info

▲
Installation
Instructions and Manuals2CLX850009A1001
Type of FasteningClamp
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK107046A0356
ApplicationLevel switch
Design
Design RangeSky Niessen
Surface FinishingMetallic
Glossy
MaterialMetal
Stainless steel
LegendSymbol "4-level switch"
ColorGold
Dimensions
Product Net Width0.054 m
Product Net Height0.054 m
Product Net Depth / Length0.073 m
Product Net Weight0.031 kg
Material Compliance
RoHS Declaration2CLC855400A1201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
Popular Downloads
Marketing Video9AKK107045A8833
9AKK106930A1594
9AKK108468A9590
External Classifications and Standards
ETIM 9EC000011 - Control element/cover plate for domestic switching devices
ETIM 10EC000011 - Control element/cover plate for domestic switching devices
UNSPSC39121704
