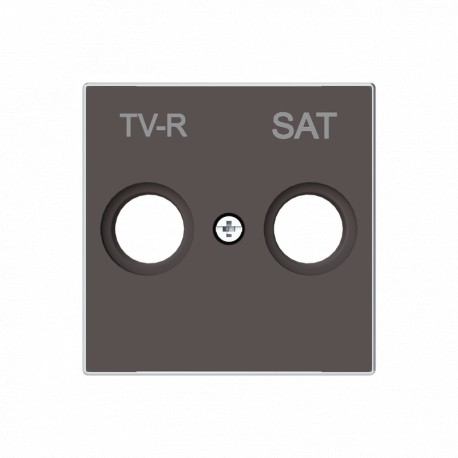

NIESSEN 2CLA855010A6301 2CLA855010A6301 8550.1 TP NIESSEN Tapa toma TV+R / SAT TP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA855010A6301 8550.1 TP NIESSEN Tapa toma TV+R / SAT TP

2CLA855010A6301

8550.1 TP

NIESSEN

20 Pcs.

Tapa toma TV+R / SAT TP Cover socket TV+R/SAT TP Cover plate Sat 1 gang Taupe - Sky Niessen

Automation > Insert/cover for communication technology
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CLA855010A6301 8550.1 TP NIESSEN Tapa toma TV+R / SAT TP manufactured by Niessen functions as a dedicated cover plate for television, radio, and satellite signal outlets. Such faceplates provide a finished architectural appearance while securing coaxial termination points within standard flush-mounted electrical box setups.

Pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX810109A1001
  • Mounting Type: Flush-mounted
  • Type of Fastening: Mounting with Screw
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Environmental Information: 9AKK108466A4737
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Application: Sat
  • Type of Indicator: Without indication field
  • Outlet Orientation: Straight
  • Accessories Available: Yes
  • Number of Batteries: 0
  • Design Range: Sky Niessen
  • Surface Finishing: Decor;Matt
  • Material: Plastic;Thermoplastic
  • Color: Taupe

More info

▲
Installation
Instructions and Manuals2CLX810109A1001
Mounting TypeFlush-mounted
Type of FasteningMounting with Screw
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Environmental Information9AKK108466A4737
Technical
Data Sheet, Technical Information9AKK107046A0356
ApplicationSat
Type of IndicatorWithout indication field
Outlet OrientationStraight
Accessories AvailableYes
Number of Batteries0
Design
Design RangeSky Niessen
Surface FinishingDecor;Matt
MaterialPlastic;Thermoplastic
ColorTaupe
Dimensions
Product Net Width126.000 mm
Product Net Height102.000 mm
Product Net Depth / Length138.000 mm
Material Compliance
RoHS Declaration2CLC855010A6301
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108469A7957
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240123
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
EU Data Act Applicability and ComplianceNot Applicable
Popular Downloads
Marketing Video9AKK108468A9589
9AKK106930A1594
9AKK108468A9590
External Classifications and Standards
ETIM 9EC000018 - Insert/cover for communication technology
ETIM 10EC000018 - Insert/cover for communication technology
UNSPSC39121704
