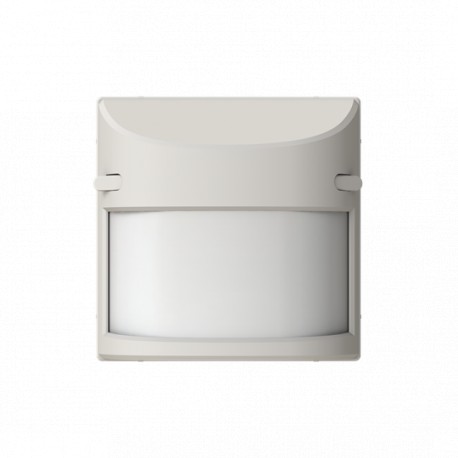

2CLA854110A6201 8541.1 DN NIESSEN Sensor detector movimiento ir DN
2CLA854110A6201
8541.1 DN
NIESSEN
1 Pcs.
Automation > Sensor element for movement sensor
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Niessen 2CLA854110A6201 sensor detector movimiento ir DN provides precise infrared movement sensing capabilities for automated building control networks. Devices of this type are widely deployed in commercial environments to maintain efficient energy usage by controlling lighting loads dynamically.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: 8541.1 DN
- Product ID: 2CLA854110A6201
- Catalog Description: 8541.1 DN Movement detector sensor Movement sensor - Sky Niessen
- Design Range: Sky Niessen
- Mounting Type: Flush Mounted
- Material: Plastic Thermoplastic
- Model Number: Movement sensor
- Number of Batteries: 0
- Ambient Air Temperature: Operation -5 ... +35 °C Storage -5 ... +50 °C
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information: 2CLC854110A6201
- REACH Declaration: 9AKK108467A7464
- Environmental Information: 9AKK108466A4737
- Data Sheet, Technical Information: 9AKK107046A0356
- Instructions and Manuals: 2CLX810109A1001
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
More info
▲- Extended Product Type:
- 8541.1 DN
- Product ID:
- 2CLA854110A6201
- EAN:
- 8427238236650
- Catalog Description:
- 8541.1 DN Movement detector sensor Movement sensor - Sky Niessen
- Long Description:
- Color: Duna For automatic switching of devices dependent on motion and brightness.
For relay inserts 8141.4
For MOS-Fet insert 8141.3
With integrated selector switch for ON-AUTOMATIC-OFF (lockable).
Surveillance density: 18 sectors with 72 switching segments.
Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
Temperature range (Device): 0 °C to 35 °C
Detection range: frontal: 12 m, lateral: 8 m
Brightness limit value: 5 Lux - Up to daytime operation
Detection angle: 180 °
Mounting height: 0.8 m - 1.2 m
Technical
- Design Range:
- Sky Niessen
- Mounting Type:
- Flush Mounted
- Material:
- Plastic
Thermoplastic
- Model Number:
- Movement sensor
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC854110A6201
- REACH Declaration:
- 9AKK108467A7464
- Environmental Information:
- 9AKK108466A4737
Dimensions
- Product Net Width:
- 0.073m
- Product Net Height:
- 0.052m
- Product Net Depth / Length:
- 0.073m
Ordering
- Minimum Order Quantity:
- 1 piece
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 0.04 kg
- Customs Tariff Number:
- 85389099
- Country of Origin:
- Spain (ES)
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Popular Downloads
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Instructions and Manuals:
- 2CLX810109A1001
Classifications
- ETIM 8:
- EC000138 - Sensor element for movement sensor
- ETIM 9:
- EC000138 - Sensor element for movement sensor
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85389099
- UNSPSC:
- 39122236
