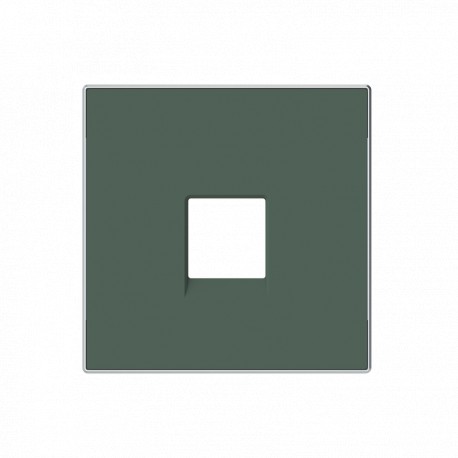

2CLA851700A1901 8517 CM NIESSEN Tapa toma de teléfono / informática CM
2CLA851700A1901
8517 CM
NIESSEN
10 Pcs.
Automation > Insert/cover for communication technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen 2CLA851700A1901 8517 CM Tapa toma de teléfono / informática acts as a cover plate for telephone and data connection outlets in flush-mounted installations. Such accessories protect wiring infrastructure while maintaining a clean aesthetic in commercial and residential workspaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX810109A1001
- Mounting Type: Flush-mounted
- Type of Fastening: Clamp
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Environmental Information: 9AKK108466A4737
- Data Sheet, Technical Information: 9AKK107046A0356
- Application: For data connection housing
- Type of Indicator: Without indication field
- Outlet Orientation: Straight
- Accessories Available: Yes
- Number of Batteries: 0
- Design Range: Sky Niessen
- Surface Finishing: Decor;Matt
- Material: Plastic;Thermoplastic
- Color: Green
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX810109A1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Clamp |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Environmental Information | 9AKK108466A4737 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Application | For data connection housing |
| Type of Indicator | Without indication field |
| Outlet Orientation | Straight |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Design | |
| Design Range | Sky Niessen |
| Surface Finishing | Decor;Matt |
| Material | Plastic;Thermoplastic |
| Color | Green |
| Dimensions | |
| Product Net Width | 77.000 mm |
| Product Net Height | 65.000 mm |
| Product Net Depth / Length | 172.000 mm |
| Material Compliance | |
| RoHS Declaration | 2CLC851700A1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108469A7957 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| Popular Downloads | |
| Marketing Video | 9AKK108468A9589 |
| 9AKK106930A1594 | |
| 9AKK108468A9590 | |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121704 |
