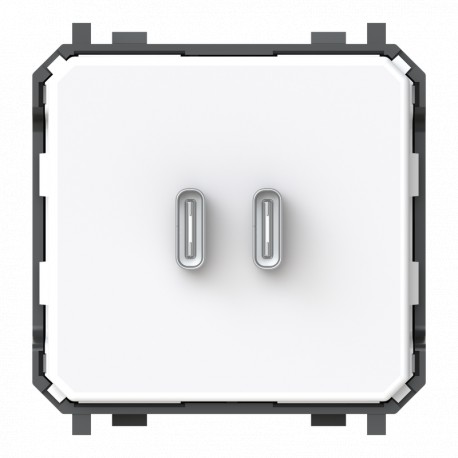

NIESSEN 2CLA818550A1001 2CLA818550A1001 8185.5 NIESSEN USB C+C 30W PD Charger View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA818550A1001 8185.5 NIESSEN USB C+C 30W PD Charger

2CLA818550A1001

8185.5

NIESSEN

1 Pcs.

USB C+C 30W PD Charger USB charger C+C 30W - Platform 8100

Automation > USB power supply
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

USB charger type 2CLA818550A1001 8185.5 NIESSEN USB C+C 30W PD Charger provides high-efficiency power delivery supporting modern Power Delivery standards for fast device charging. Wall-integrated power supply units of this caliber are standard in contemporary building fit-outs to accommodate high-draw electronics safely and reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 1TXA60027C0701
  • Data Sheet, Technical Information: 1TXA60027C0701
  • Design Range: Platform 8100
  • Product Net Width: 87.62 mm
  • Product Net Height: 76.6 mm
  • Product Net Depth / Length: 46.65 mm
  • Product Net Weight: 0.074 kg
  • Dimension Diagram: 1TXA60027C0701
  • Building Information Modeling – BIM: Y
  • RoHS Declaration: 2CLC81855ROHS25
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • REACH Declaration: 2CLC81855SVHC25
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20250121
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

More info

▲
Installation
Instructions and Manuals1TXA60027C0701
Technical
Data Sheet, Technical Information1TXA60027C0701
Design
Design RangePlatform 8100
Dimensions
Product Net Width87.62 mm
Product Net Height76.6 mm
Product Net Depth / Length46.65 mm
Product Net Weight0.074 kg
Dimension Diagram1TXA60027C0701
Engineering
Building Information Modeling – BIMY
Material Compliance
RoHS Declaration2CLC81855ROHS25
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration2CLC81855SVHC25
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250121
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
External Classifications and Standards
ETIM 9EC002949 - USB power supply
ETIM 10EC002949 - USB power supply
UNSPSC39121406
