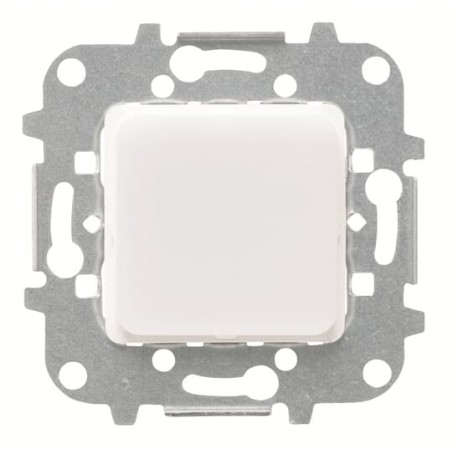

NIESSEN 2CLA818010A1001 2CLA818010A1001 8180.1 NIESSEN Señalizador luminoso View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CLA818010A1001 8180.1 NIESSEN Señalizador luminoso

2CLA818010A1001

8180.1

NIESSEN

1 Pcs.

Señalizador luminoso Indicator light Signaling LED not exchangeable / White

Automation > Information light signal for domestic switching devices
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An information light signal functions as an optical indicator in electrical switchgear and wall installations, providing clear visual feedback for equipment status. The Niessen 2CLA818010A1001 8180.1 niessen señalizador luminoso mounts flush within platform wiring systems to deliver reliable LED signaling.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Instructions and Manuals: 2CLX818019A1001
  • Mounting Type: Flush Mounted
  • Type of Fastening: Screw
  • Ambient Air Temperature: Operation -5 ... +35 °C
  • Degree of Protection: IP20
  • Data Sheet, Technical Information: 9AKK107046A0356
  • Lamp Type: LED not exchangeable
  • Accessories Available: Yes
  • Lamp Color: White
  • Number of Batteries: 0
  • Rated Voltage (U r ): 230 V
  • Design Range: Platform 8100
  • Surface Finishing: Untreated
  • Material: Thermoplastic
  • Product Net Width: 0.073 m
  • Product Net Height: 0.052 m

More info

▲
Installation
Instructions and Manuals2CLX818019A1001
Mounting TypeFlush Mounted
Type of FasteningScrew
Environmental
Ambient Air TemperatureOperation -5 ... +35 °C
Storage -5 ... +50 °C
Degree of ProtectionIP20
Technical
Data Sheet, Technical Information9AKK107046A0356
Lamp TypeLED not exchangeable
Accessories AvailableYes
Lamp ColorWhite
Number of Batteries0
Electrical
Rated Voltage (Ur)230 V
Design
Design RangePlatform 8100
Arco
Sky Niessen
Vega
Surface FinishingUntreated
Matt
MaterialThermoplastic
Plastic
Dimensions
Product Net Width0.073 m
Product Net Height0.052 m
Product Net Depth / Length0.073 m
Product Net Weight0.068 kg
Built-In Depth (t2)40 mm
Ordering
Replaced Product ID (OLD)2CL0818010
Material Compliance
RoHS Declaration2CLC818010A1001
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A7464
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230816
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Certificates and Declarations
Declaration of Conformity - CE9AKK107680A8230
EU Data Act Applicability and ComplianceNot Applicable
External Classifications and Standards
ETIM 9EC000064 - Information light signal for domestic switching devices
ETIM 10EC000064 - Information light signal for domestic switching devices
UNSPSC39122200
