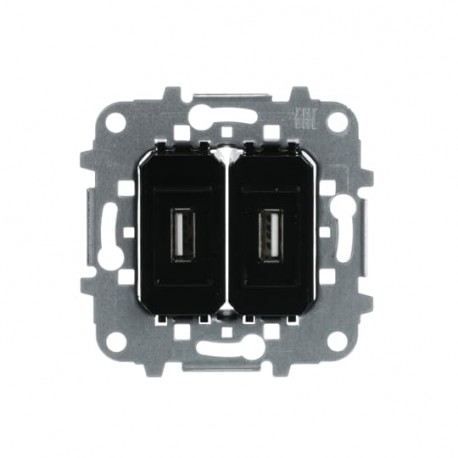

2CLA815588A1001 8155.88 NIESSEN Toma VDI doble USB conexion tornillo
2CLA815588A1001
8155.88
NIESSEN
1 Pcs.
Automation > Insert/cover for communication technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 2CLA815588A1001 8155.88 NIESSEN Toma VDI doble USB conexion tornillo acts as a dual USB data and charging interface insert designed for flush-mounted electrical installation boxes. Such units provide convenient low-voltage power delivery and data transfer capabilities within modern architectural and commercial spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX215509N1001
- Mounting Type: Flush mounted (plaster)
- Type of Fastening: Mounting with Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Application: USB
- Outlet Orientation: Straight
- Number of Batteries: 0
- Design Range: Platform 8100
- Product Net Width: 73 mm
- Product Net Height: 52 mm
- Product Net Depth / Length: 0.073 m
- Product Net Weight: 0.07 kg
- RoHS Declaration: 2CLC815588A1001
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX215509N1001 |
| Mounting Type | Flush mounted (plaster) |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Application | USB |
| Outlet Orientation | Straight |
| Number of Batteries | 0 |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Dimensions | |
| Product Net Width | 73 mm |
| Product Net Height | 52 mm |
| Product Net Depth / Length | 0.073 m |
| Product Net Weight | 0.07 kg |
| Material Compliance | |
| RoHS Declaration | 2CLC815588A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1758 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121462 |
