2CLA815540A1001 8155.4 NIESSEN Toma VDI Mini-Jack conexion tornillo
2CLA815540A1001
8155.4
NIESSEN
1 Pcs.
Automation > Insert/cover for communication technology
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

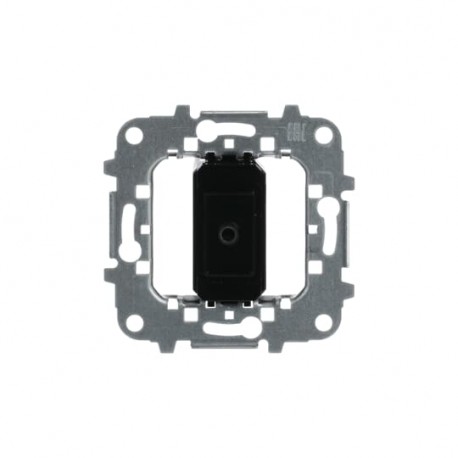

Niessen 2CLA815540A1001 8155.4 Toma VDI Mini-Jack conexion tornillo is an audio-video connector outlet designed for flush-mounted electrical installations. Connectors of this type facilitate the seamless integration of auxiliary audio devices into structured cabling systems within commercial or residential buildings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX215509N1001
- Mounting Type: Flush mounted (plaster)
- Type of Fastening: Mounting with Screw
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK107046A0356
- Application: Jack plug
- Outlet Orientation: Straight
- Number of Batteries: 0
- Design Range: Platform 8100
- Product Net Width: 73 mm
- Product Net Height: 52 mm
- Product Net Depth / Length: 0.073 m
- Product Net Weight: 0.051 kg
- RoHS Declaration: 2CLC815540A1001
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX215509N1001 |
| Mounting Type | Flush mounted (plaster) |
| Type of Fastening | Mounting with Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Application | Jack plug |
| Outlet Orientation | Straight |
| Number of Batteries | 0 |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Dimensions | |
| Product Net Width | 73 mm |
| Product Net Height | 52 mm |
| Product Net Depth / Length | 0.073 m |
| Product Net Weight | 0.051 kg |
| Material Compliance | |
| RoHS Declaration | 2CLC815540A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1758 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
| UNSPSC | 39121462 |
