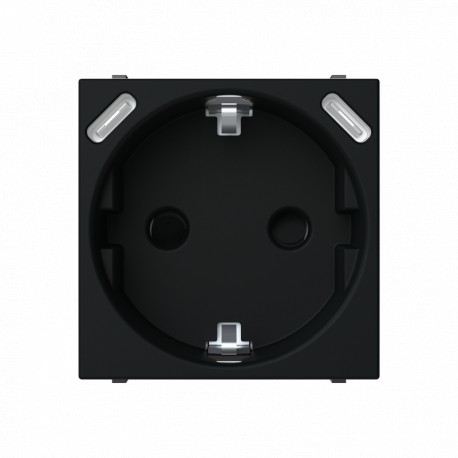

2CLA228830N1501 N2288.3 NT NIESSEN Base enchufe Schuko + USB-C+C 2M NT
2CLA228830N1501
N2288.3 NT
NIESSEN
1 Pcs.
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Niessen 2CLA228830N1501 Zenit series socket outlet integrates standard AC power connections with built-in USB charging ports for contemporary commercial and residential installations. Flush-mounted electrical outlets provide direct power interfaces for wall-level device integration.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Snapper Mounting
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Number of Phases: 2-phase
- Connection Type: Screw Clamp
- Socket Outlet Type: Multi - Standard Socket
- USB Port Type: USB A/C
- Rated Current (I n ): 16 A
- Design Range: Zenit
- Surface Finishing: Decor
- Label Space Provided: Without Label Space
- Color: Black
- Number of Gangs: 1-gang
- Product Net Width: 44 mm
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Snapper Mounting |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Number of Phases | 2-phase |
| Connection Type | Screw Clamp |
| Socket Outlet Type | Multi - Standard Socket |
| USB Port Type | USB A/C |
| Electrical | |
| Rated Current (In) | 16 A |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Label Space Provided | Without Label Space |
| Color | Black |
| Number of Gangs | 1-gang |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 73 mm |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000125 - Socket outlet |
| ETIM 10 | EC000125 - Socket outlet |
| UNSPSC | 39121406 |
