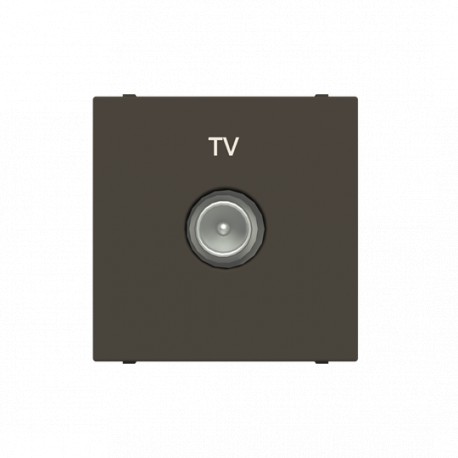

2CLA225070N1801 N2250.7 AN NIESSEN Toma TV final tipo M AN
2CLA225070N1801
N2250.7 AN
NIESSEN
10 Pcs.
Automation > Insert/cover for communication technology
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an end-line television outlet, the 2CLA225070N1801 N2250.7 AN NIESSEN Toma TV final tipo M AN by Niessen terminates coaxial cabling runs within broadcast distribution systems. These terminal wall sockets ensure proper signal impedance matching and secure connection for broadcast and satellite receivers in residential spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX215079N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Application: Sat
- Type of Indicator: Without indication field
- Outlet Orientation: Straight
- Number of Batteries: 0
- Design Range: Zenit
- Surface Finishing: Decor;Matt
- Material: Plastic;Thermoplastic
- Color: Anthracite
- Number of Modules: 2
- Product Net Width: 44 mm
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX215079N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Application | Sat |
| Type of Indicator | Without indication field |
| Outlet Orientation | Straight |
| Number of Batteries | 0 |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor;Matt |
| Material | Plastic;Thermoplastic |
| Color | Anthracite |
| Number of Modules | 2 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 42 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA225070N1802 |
| Material Compliance | |
| RoHS Declaration | 2CLC225070N1801 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1761 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
