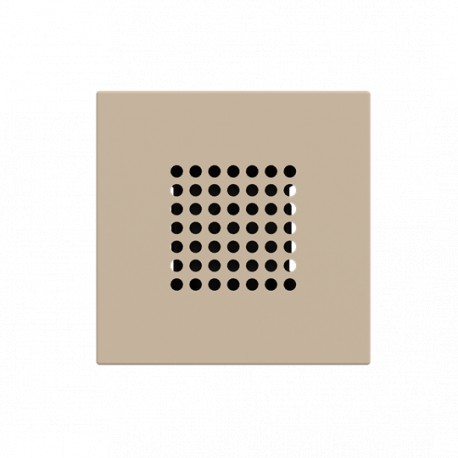

2CLA221900N1901 N2219 CV NIESSEN Zumbador CV
2CLA221900N1901
N2219 CV
NIESSEN
10 Pcs.
Automation > Buzzer
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CLA221900N1901 N2219 CV NIESSEN Zumbador CV is a buzzer designed for electrical installations requiring dependable acoustic alerts, such as call systems or notification panels. Buzzers of this type are commonly installed in building management networks to emit a steady tone upon receiving an electrical trigger.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX210109N1001
- Mounting Type: Built-in
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Sound / Tone Type: Continuous Tone
- Sound dB (A): 75 dB
- Accessories Available: Yes
- Number of Batteries: 0
- Current Type: AC
- Rated Voltage (U r ): 250 V
- Power Consumption (@P cons ): 0.2 A
- Design Range: Zenit
- Surface Finishing: Decor
- Housing Material: Plastic
- Material: Plastic
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX210109N1001 |
| Mounting Type | Built-in |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Sound / Tone Type | Continuous Tone |
| Sound dB (A) | 75 dB |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Current Type | AC |
| Rated Voltage (Ur) | 250 V |
| Power Consumption (@Pcons) | 0.2 A |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Decor |
| Matt | |
| Housing Material | Plastic |
| Material | Plastic |
| Thermoplastic | |
| Color | Champagne |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 44 mm |
| Product Net Weight | 38 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA221900N1902 |
| 2CLA221900N1903 | |
| Material Compliance | |
| RoHS Declaration | 2CLC221900N1901 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A5892 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000844 - Buzzer |
| ETIM 10 | EC000844 - Buzzer |
| UNSPSC | 39121311 |
