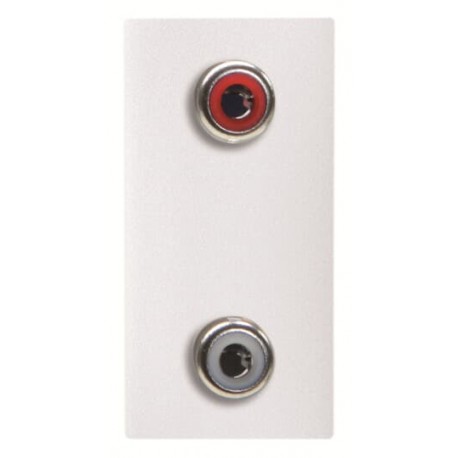

2CLA215520N1101 N2155.2 BL NIESSEN Toma VDI 2RCA conexión con tornillo BL
2CLA215520N1101
N2155.2 BL
NIESSEN
1 Pcs.
Toma VDI 2RCA conexión con tornillo BL
2RCA VDI socket, BL screw connection
Insert/cover RCA 1 gang White - Zenit
Automation > Insert/cover for communication technology
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Niessen 2CLA215520N1101 N2155.2 BL VDI socket integrates dual RCA connections with convenient screw terminals for AV routing. Media outlets of this category ensure secure signal paths for composite video and audio systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Instructions and Manuals: 2CLX215509N1001
- Mounting Type: Flush-mounted
- Type of Fastening: Engage (Snap)
- Ambient Air Temperature: Operation -5 ... +35 °C
- Degree of Protection: IP20
- Data Sheet, Technical Information: 9AKK10103A5108
- Application: RCA
- Type of Indicator: Without indication field
- Outlet Orientation: Straight
- Number of Batteries: 0
- Design Range: Zenit
- Surface Finishing: Untreated;Glossy
- Material: Plastic;Thermoplastic
- RAL Number: RAL 9010 - Pure White
- Color: White
- Number of Modules: 1
More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX215509N1001 |
| Mounting Type | Flush-mounted |
| Type of Fastening | Engage (Snap) |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Application | RCA |
| Type of Indicator | Without indication field |
| Outlet Orientation | Straight |
| Number of Batteries | 0 |
| Design | |
| Design Range | Zenit |
| Surface Finishing | Untreated;Glossy |
| Material | Plastic;Thermoplastic |
| RAL Number | RAL 9010 - Pure White |
| Color | White |
| Number of Modules | 1 |
| Dimensions | |
| Product Net Width | 22 mm |
| Product Net Height | 44 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Weight | 26 g |
| Ordering | |
| Replaced Product ID (OLD) | 2CLA215520N1102 |
| 2CLA215520N1103 | |
| Material Compliance | |
| RoHS Declaration | 2CLC215520N1101 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 2aaa5576-3f62-4a3c-90d3-9da9a18b26e9 Spain |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1758 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC000018 - Insert/cover for communication technology |
| ETIM 10 | EC000018 - Insert/cover for communication technology |
