View larger
Images are for illustrative purposes only. Please refer to data sheet for details

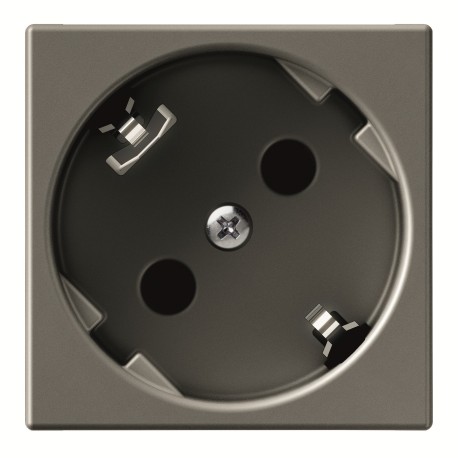

2CLA208800T1801 T2088 AN NIESSEN Base schuko AN RAL7016
2CLA208800T1801
T2088 AN
NIESSEN
10 Pcs.
Base schuko AN RAL7016
Socket Schuko 45º AN RAL7016 Without imprint Anthracite - CEM
Automation > Socket outlet
Flush-mounting series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- T2088 AN
- Product ID:
- 2CLA208800T1801
- EAN:
- 8427238113869
- Catalog Description:
- Socket Schuko 45º AN RAL7016 Protective contact (SCHUKO) Anthracite - CEM
- Long Description:
- Socket Schuko 45º AN RAL7016
Security system to avoid indirect contacts.
Compatible with T2xxx.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Rated Voltage (Ur):
- 250 V
- Rated Current (In):
- 16 A
- Frequency (f):
- 50...60 Hz
- Number of Phases:
- 2
- Number of Active Pin Terminals:
- 0
- Number of Gangs:
- 1
- Design Range:
- CEM
- Connection Type:
- Screw
- Mounting Type:
- Module frame
- Socket Outlet Type:
- Protective Contact (SCHUKO)
- Type of Fastening:
- Snapper Mounting
- Surface Finishing:
- Decor
Matt
- Material:
- Thermoplastic
Plastic
- Label Space Provided:
- No
- Legend:
- Without imprint
- Model Number:
- Protective contact (SCHUKO)
- Color:
- Anthracite
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.11m
- Product Net Height:
- 0.05m
- Product Net Depth / Length:
- 0.293m
- Product Net Weight:
- 0.043kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK107492A6484
Classifications
- ETIM 8:
- EC000125 - Socket outlet
- ETIM 9:
- EC000125 - Socket outlet
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85366990
